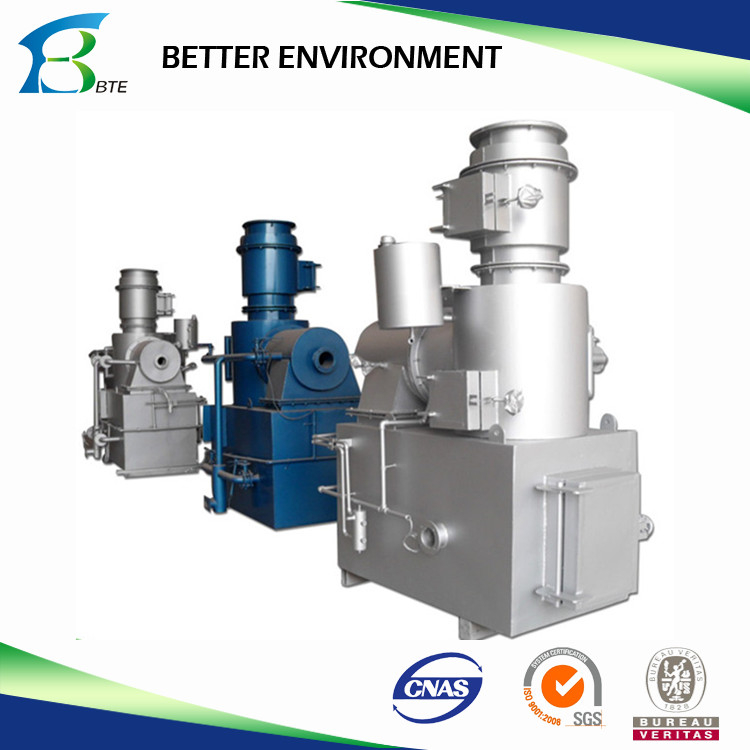

Medical Waste Incinerator

WFS Series Waste Incinerator features of compact size, high burning effect, reasonable burning technology learned from Japan, eco-friendly etc. It is an ideal choice for waste treatment of hospitals, hotels and various waste management stations.

Quantity:
  • BETTER
  • 8417809090

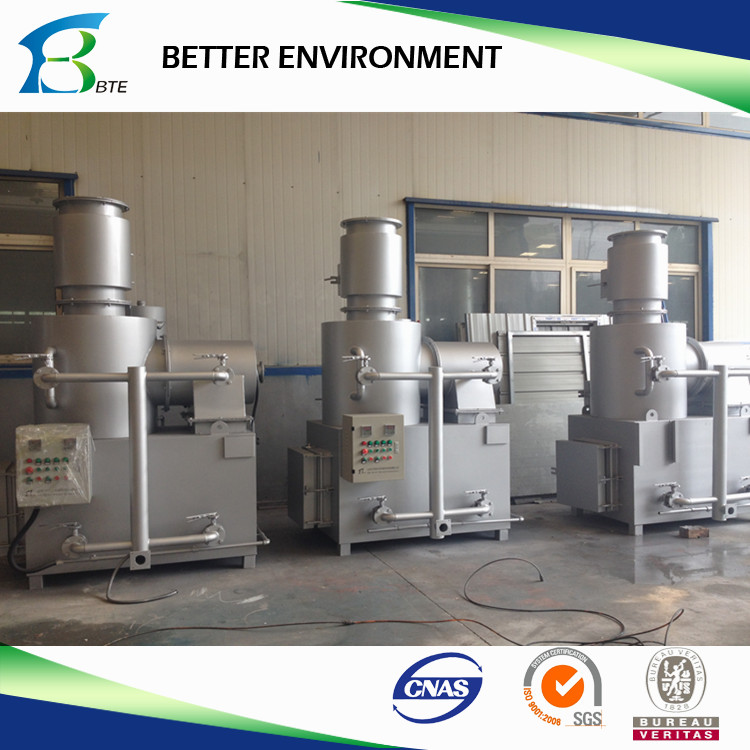

Medical Waste Incinerator

Technical Support


(1) 3D video guide

(2) Manual book in English
(3) Technical drawing
(4) Experienced engineers guidance
Advantages



(1) Long lifetime
(2) Totally enclosed operation
(3) Suitable for treating many kinds of solid waste
(4) Avoid secondary pollution
(5) Simple operation

Product Description



    WFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology,
absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size,
high burning effect, reasonable burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas.



Main Features

(1) Gasifie incineration is used for burning many kinds of waste.

(2) Both gas-motivated and oil-motivated are all can be preferred according to customers’ needs.
(3) Daily waste can be burned once by gasified incineration.
(4) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust, dioxin etc. (lower than International standard).
(5) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(6) Compact structure and small land occupation.



Application

(1)Hospital medical waste: Bandage, Paper/ Injection Syringe/ Drop Bottle, expired drugs, infectious viscera, etc.

(2)Infectious diseased animal body/fur/hair, widely used in pets carcasses disposal: pig, dog, cat, fish, chicken, cattle, duck, etc.
(3)Domestic daily home waste.
(4)Disposable plastic waste.
(5)Some other industrial waste.


Technical Specification



Model WFS-30 WFS-50 WFS-150 WFS-300 WFS-500
Burning Capacity 20-30kg/time  (3-6 times/day) 30-50kg/time (3-6times/day) 100-150kg/time (3-6times/day) 200-300kg/time (3-6times/day) 300-400kg/time(3-6times/day)
Incinerator Size       m (L*H*B) 1.45*0.9*1.75 1.8*1.15*3 2*1.4*3.5 2.2*1.4*3.8 3*2*4.8
Imputing Mouth Width (mm) 480*600 620*800 760*960 900*1100 1080*1280
Chimney External Diameter
(mm)
280 280 300 400 460
Draught Fan 0.37kw 0.37kw 0.5kw 1.1kw 1.1kw/0.55kw
Combustion  Burner 0.11kw
Oil consumption: 4-6kg/h
0.11kw
Oil consumption: 4-10kg/h
0.11kw
Oil consumption: 4-10kg/h
0.22kw
Oil consumption: 7-14kg/h
0.22kw
Oil consumption: 7-14kg/h
Re-Burner 0.11 kw
Oil consumption 4-6 kg/h
0.11kw
Oil consumption: 4-10kg/h
0.22kw
Oil consumption: 7-14kg/h
0.37kw
Oil consumption: 10-20kg/h
0.37kw
Oil consumption: 15-26kg/h
Voltage 380v/220v 380v/220v 380v/220v 380v/220v 380v/220v


Emission Standard

Incinerator Flue Gas Emission Standard

No. Pollutant name Measuring unit Data
1 Blackness of Flue Gas  Ringelmann class
2 Smoke & Dust mg/m3 100
3 CO mg/m3 100
4 SO2 mg/m3 400
5 HF mg/m3 9.0
6 HCL mg/m3 100
7 NO2 mg/m3 500
