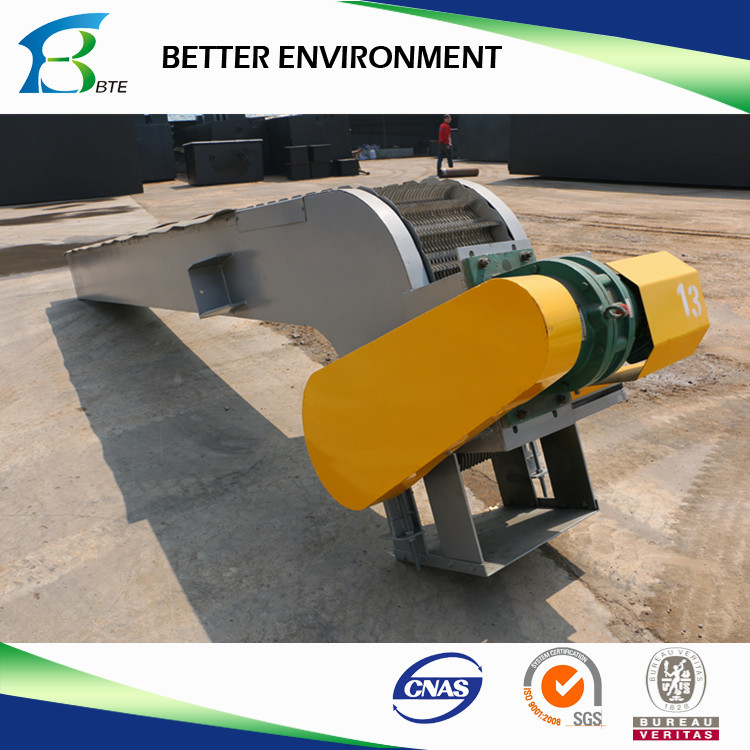

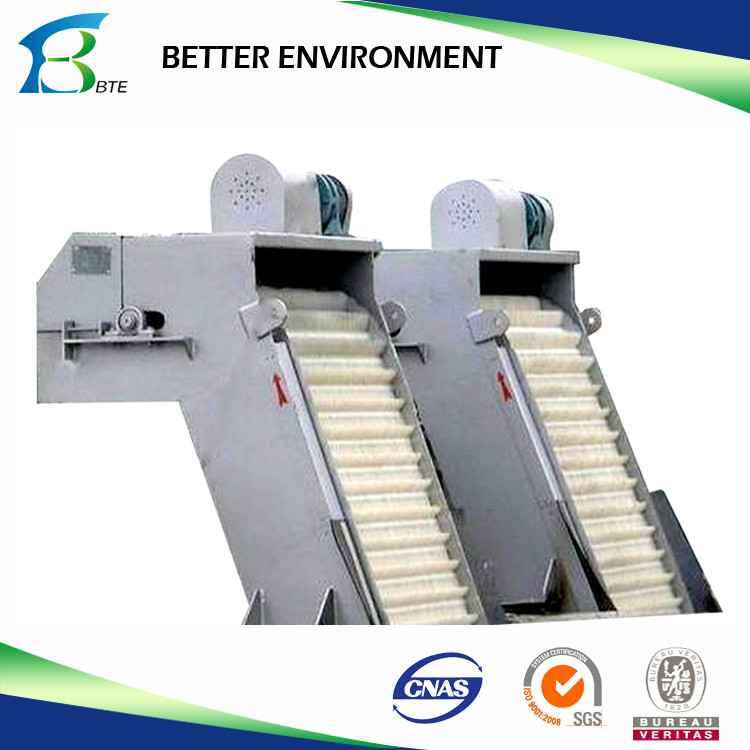

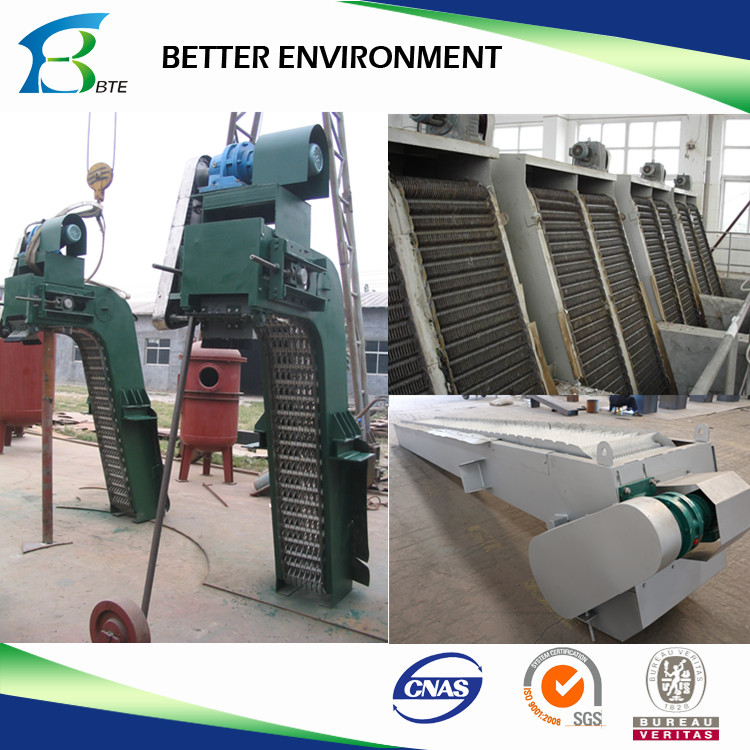

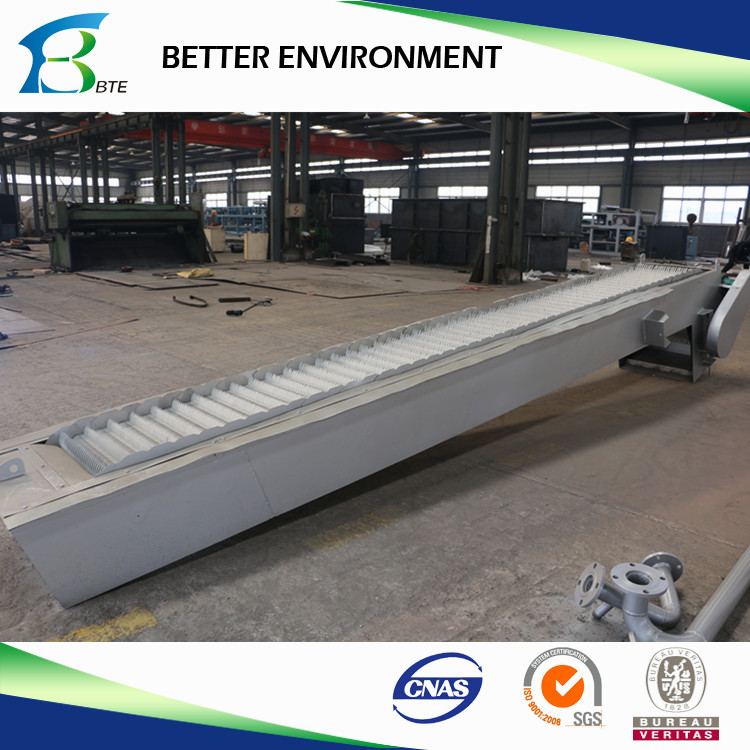

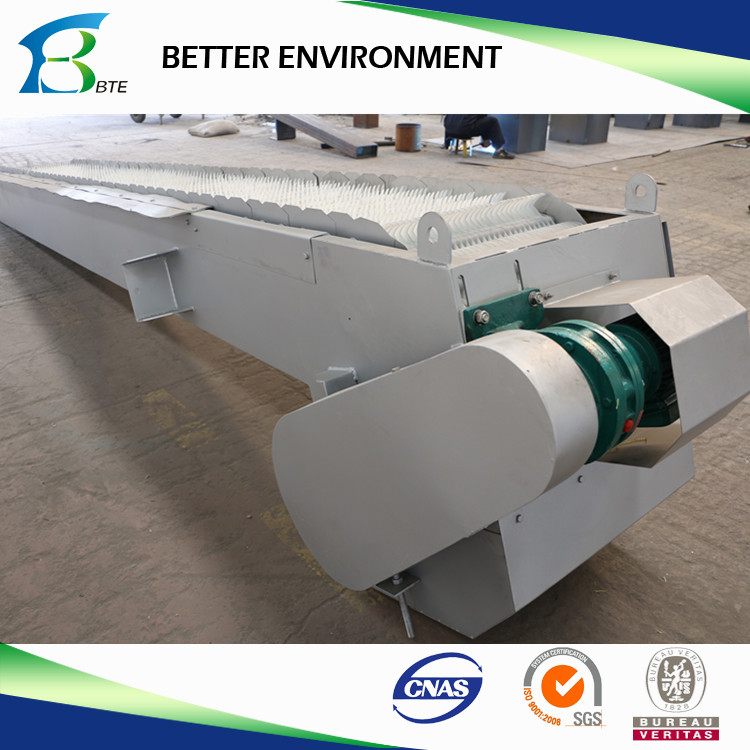

Mechanical Bar Screen

Self-cleaning screen waste remover is composed of main frame, driving device, tooth harrow and transmission chains. Teeth with ABS, nylon 6, nylon 1010 or stainless steel material are ranked on axis to form a seal chain. It pushes waste to flow into tank instead of to the top guided by rail and wheel. And brush will clean the residue on teeth.
Quantity:
Inquire Add to Basket

  • BETTER

  • 8421299090

Mechanical Grille Waste Cleaning Machine

Discription

Self-cleaning screen waste remover is composed of main frame, driving device, tooth harrow and transmission chains. Teeth with ABS,

nylon 6, nylon 1010 or stainless steel material are ranked on axis to form a seal chain. It pushes waste to flow into tank instead of to the
top guided by rail and wheel. And brush will clean the residue on teeth.

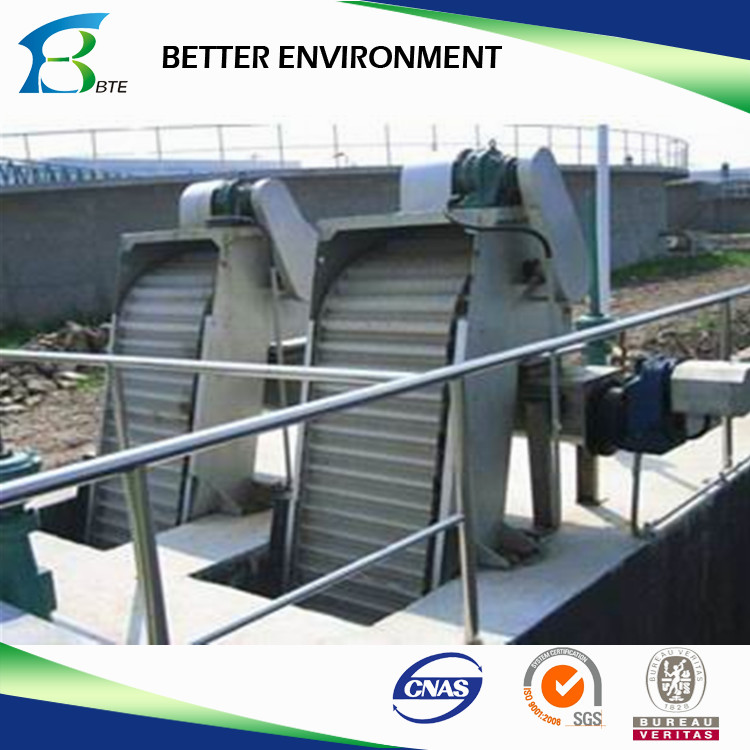

It is installed at water inlet of secondary grill and other water intake units where no large particles are in water.
It is also can be used for industrial and municipal sewage of industries such as paper mill, textile, leather, wine and sugar making, fishing etc.

Chain rotor multi teeth screen waste remover is developed on the basis of advance technology from similar products both at home and abroad.
Several teeth (48 pcs) are uniformly placed on chains with certain space, it moves from back of grill to front so as to push waste to discharging
pole along preventing board where waste can be moved by transferring device or presser.

It is suitable for usage at premier and secondary fence of water inlet of water intake units.

Technical Parameter



Model Grille width
(mm)		 Machine width
(mm)		 Chanel width
(mm)		 Grille interstice
(mm)		 Grille speed
(m/min)		 Discharge height Grille angle Power
(KW)
GSC300 300 430 500 1-60 2.2 Customize 60-80° 0.75
GSC500 500 630 700 1-60 2.2 Customize 60-80° 0.75
GSC800 800 930 900 1-60 2.2 Customize 60-80° 1.1
GSC1000 1000 1130 1200 1-60 2.2 Customize 60-80° 1.1
GSC1200 1200 1330 1400 1-60 2.2 Customize 60-80° 1.5
GSC1500 1500 1630 1700 1-60 2.2 Customize 60-80° 1.5
GSC1800 1800 2090 2210 1-60 2.2 Customize 60-80° 2.2
GSC2200 2200 2490 2610 1-60 2.2 Customize 60-80° 3.0
