BETTER
8417809090
(1) 3D video guide
(2) Manual book in English(1) Long lifetime

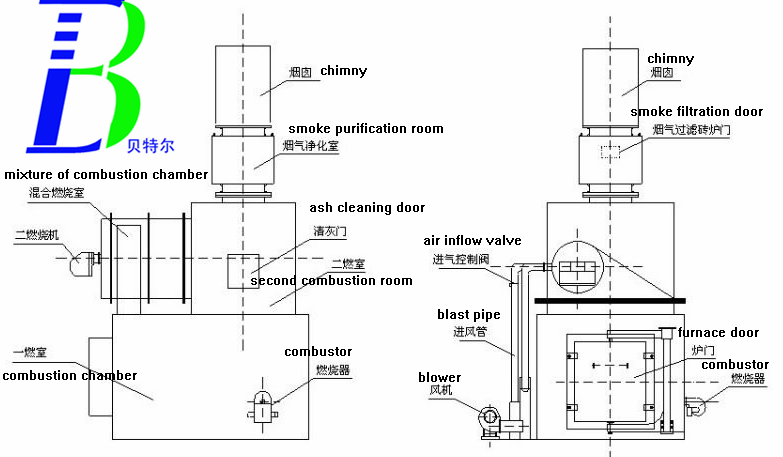

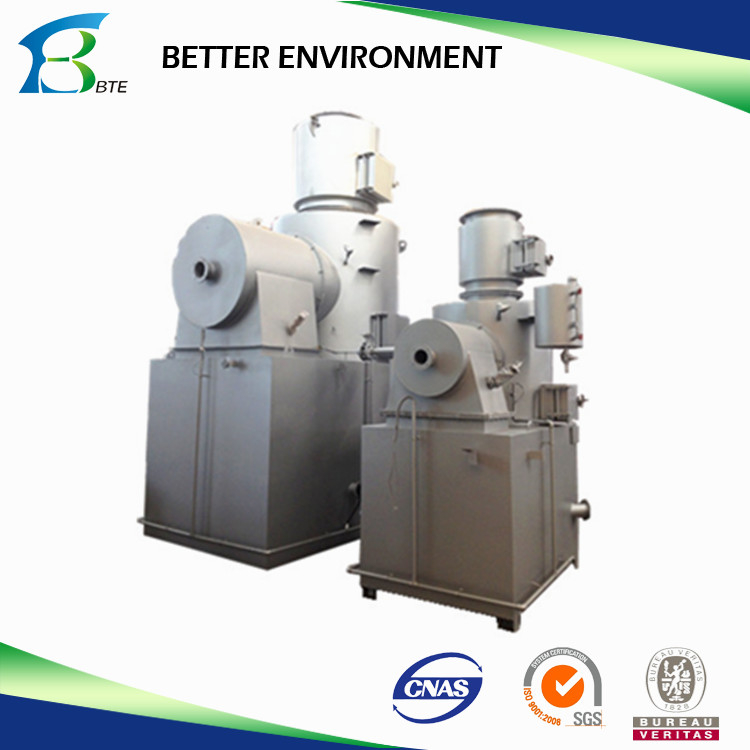

(2) Totally enclosed operationWFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology,
absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size,(1) Gasified pyrolysis incineration is used for burning many kinds of waste.
(2) Both gas-motivated and oil-motivated are all can be preferred according to customers’ needs.(1)Hospital medical waste: Bandage, Paper/ Injection Syringe/ Drop Bottle, expired drugs, infectious viscera, etc.
(2)Infectious diseased animal body/fur/hair, widely used in pets carcasses disposal: pig, dog, cat, fish, chicken, cattle, duck, etc.
| Model | WFS-30 | WFS-50 | WFS-150 | WFS-300 | WFS-500 |
| Burning Capacity | 20-30kg/time (3-6 times/day) | 30-50kg/time (3-6times/day) | 100-150kg/time (3-6times/day) | 200-300kg/time (3-6times/day) | 300-400kg/time(3-6times/day) |
| Incinerator Size m (L*H*B) | 1.45*0.9*1.75 | 1.8*1.15*3 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3*2*4.8 |
| Imputing Mouth Width (mm) | 480*600 | 620*800 | 760*960 | 900*1100 | 1080*1280 |
| Chimney External Diameter (mm) | 280 | 280 | 300 | 400 | 460 |
| Draught Fan | 0.37kw | 0.37kw | 0.5kw | 1.1kw | 1.1kw/0.55kw |
| Combustion Burner | 0.11kw Oil consumption: 4-6kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.22kw Oil consumption: 7-14kg/h | 0.22kw Oil consumption: 7-14kg/h |
| Re-Burner | 0.11 kw Oil consumption 4-6 kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.22kw Oil consumption: 7-14kg/h | 0.37kw Oil consumption: 10-20kg/h | 0.37kw Oil consumption: 15-26kg/h |
| Voltage | 380v/220v | 380v/220v | 380v/220v | 380v/220v | 380v/220v |
Incinerator Flue Gas Emission Standard
| No. | Pollutant name | Measuring unit | Data |
| 1 | Blackness of Flue Gas | Ringelmann class | Ⅰ |
| 2 | Smoke & Dust | mg/m3 | 100 |
| 3 | CO | mg/m3 | 100 |
| 4 | SO2 | mg/m3 | 400 |
| 5 | HF | mg/m3 | 9.0 |
| 6 | HCL | mg/m3 | 100 |
| 7 | NO2 | mg/m3 | 500 |
(1) 3D video guide
(2) Manual book in English(1) Long lifetime
(2) Totally enclosed operationWFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology,
absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size,(1) Gasified pyrolysis incineration is used for burning many kinds of waste.
(2) Both gas-motivated and oil-motivated are all can be preferred according to customers’ needs.(1)Hospital medical waste: Bandage, Paper/ Injection Syringe/ Drop Bottle, expired drugs, infectious viscera, etc.
(2)Infectious diseased animal body/fur/hair, widely used in pets carcasses disposal: pig, dog, cat, fish, chicken, cattle, duck, etc.
| Model | WFS-30 | WFS-50 | WFS-150 | WFS-300 | WFS-500 |
| Burning Capacity | 20-30kg/time (3-6 times/day) | 30-50kg/time (3-6times/day) | 100-150kg/time (3-6times/day) | 200-300kg/time (3-6times/day) | 300-400kg/time(3-6times/day) |
| Incinerator Size m (L*H*B) | 1.45*0.9*1.75 | 1.8*1.15*3 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3*2*4.8 |
| Imputing Mouth Width (mm) | 480*600 | 620*800 | 760*960 | 900*1100 | 1080*1280 |
| Chimney External Diameter (mm) | 280 | 280 | 300 | 400 | 460 |
| Draught Fan | 0.37kw | 0.37kw | 0.5kw | 1.1kw | 1.1kw/0.55kw |
| Combustion Burner | 0.11kw Oil consumption: 4-6kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.22kw Oil consumption: 7-14kg/h | 0.22kw Oil consumption: 7-14kg/h |
| Re-Burner | 0.11 kw Oil consumption 4-6 kg/h | 0.11kw Oil consumption: 4-10kg/h | 0.22kw Oil consumption: 7-14kg/h | 0.37kw Oil consumption: 10-20kg/h | 0.37kw Oil consumption: 15-26kg/h |
| Voltage | 380v/220v | 380v/220v | 380v/220v | 380v/220v | 380v/220v |
Incinerator Flue Gas Emission Standard
| No. | Pollutant name | Measuring unit | Data |
| 1 | Blackness of Flue Gas | Ringelmann class | Ⅰ |
| 2 | Smoke & Dust | mg/m3 | 100 |
| 3 | CO | mg/m3 | 100 |
| 4 | SO2 | mg/m3 | 400 |
| 5 | HF | mg/m3 | 9.0 |
| 6 | HCL | mg/m3 | 100 |
| 7 | NO2 | mg/m3 | 500 |
