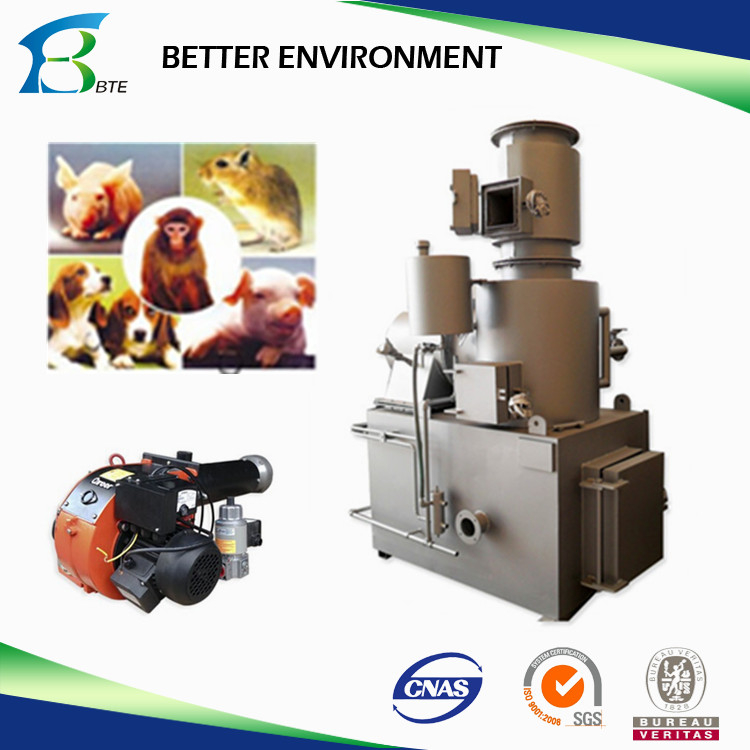

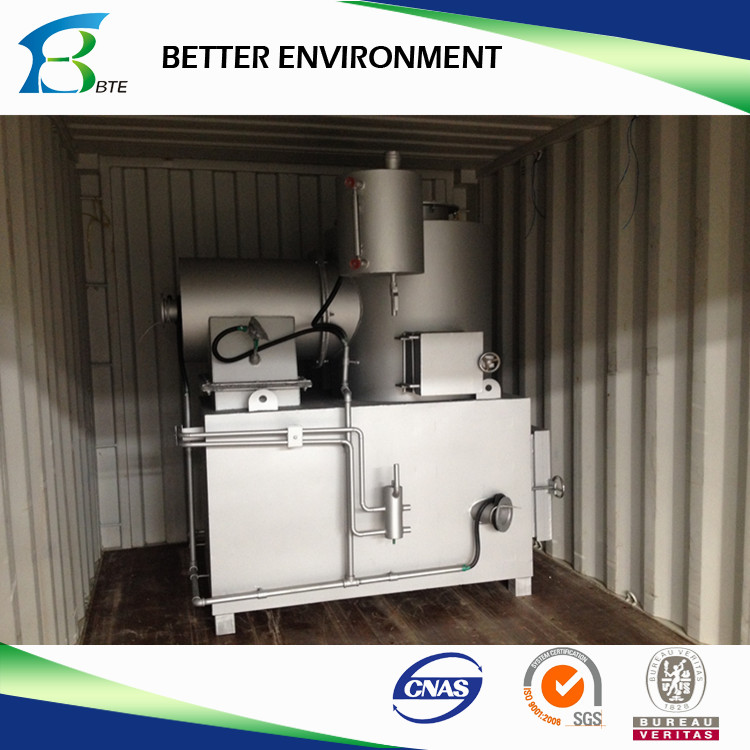

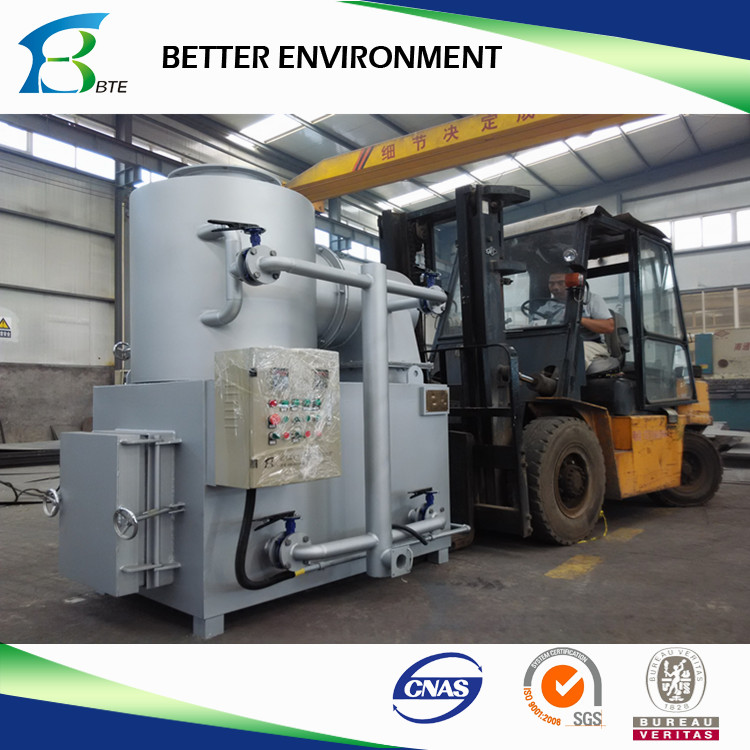

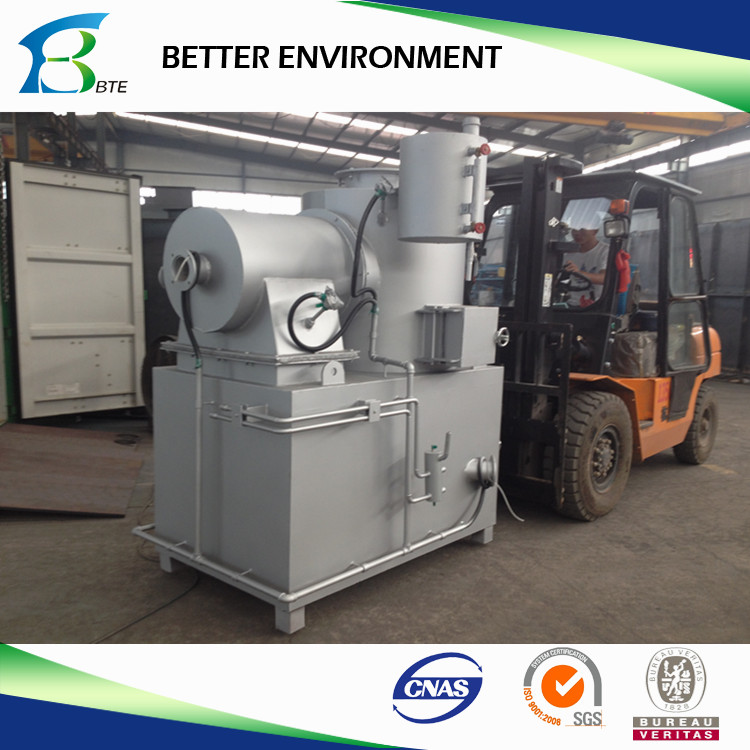

Animal Body Incinerator
(1) 3D video guide
(2) Manual book in English

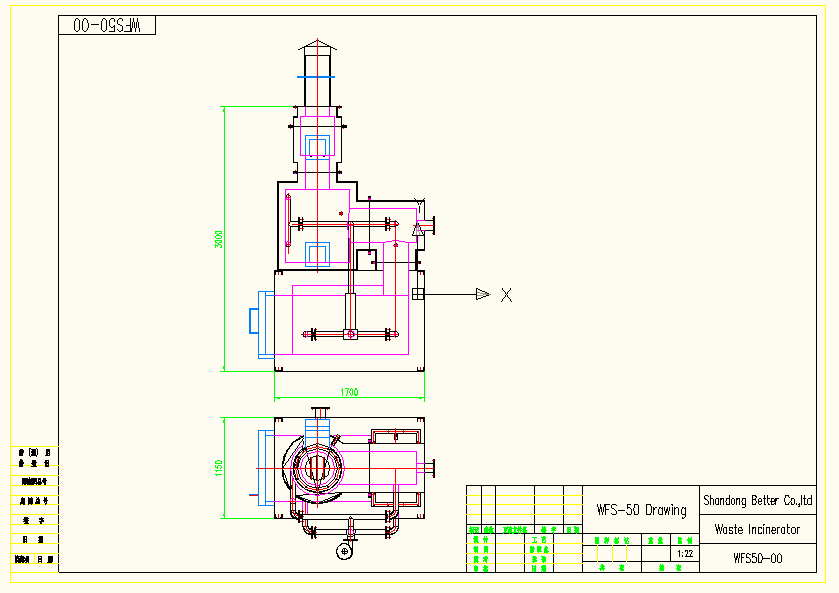

(3) Technical drawing
(4) Experienced engineers guidance (1) Long lifetime
(2) Totally enclosed operation
(3) Suitable for treating many kinds of solid waste
(4) Avoid secondary pollution
(5) Simple operation
WFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology,
absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size,
high burning effect, reasonable burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals,
hotels and various areas.
(1) Gasified incineration is used for burning many kinds of waste.
(2) Both gas-motivated and oil-motivated are all can be preferred according to customers’ needs.
(3) Daily waste can be burned once by gasified incineration.
(4) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust, dioxin etc. (lower than International standard).
(5) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(6) Compact structure and small land occupation.
(1)Hospital medical waste: Bandage, Paper/ Injection Syringe/ Drop Bottle, expired drugs, infectious viscera, etc.
(2)Infectious diseased animal body/fur/hair, widely used in pets carcasses disposal: pig, dog, cat, fish, chicken, cattle, duck, etc.
(3)Domestic daily home waste.
(4)Disposable plastic waste.
(5)Some other industrial waste.
| Model | WFS-30 | WFS-50 | WFS-150 | WFS-300 | WFS-500 |
| Burning Capacity | 20-30kg/time (3-6 times/day) | 30-50kg/time (3-6times/day) | 100-150kg/time (3-6times/day) | 200-300kg/time (3-6times/day) | 300-400kg/time(3-6times/day) |
| Incinerator Size m (L*H*B) | 1.45*0.9*1.75 | 1.8*1.15*3 | 2*1.4*3.5 | 2.2*1.4*3.8 | 3*2*4.8 |
| Imputing Mouth Width (mm) | 480*600 | 620*800 | 760*960 | 900*1100 | 1080*1280 |
Chimney External Diameter
(mm) | 280 | 280 | 300 | 400 | 460 |
| Draught Fan | 0.37kw | 0.37kw | 0.5kw | 1.1kw | 1.1kw/0.55kw |
| Combustion Burner | 0.11kw
Oil consumption: 4-6kg/h | 0.11kw
Oil consumption: 4-10kg/h | 0.11kw
Oil consumption: 4-10kg/h | 0.22kw
Oil consumption: 7-14kg/h | 0.22kw
Oil consumption: 7-14kg/h |
| Re-Burner | 0.11 kw
Oil consumption 4-6 kg/h | 0.11kw
Oil consumption: 4-10kg/h | 0.22kw
Oil consumption: 7-14kg/h | 0.37kw
Oil consumption: 10-20kg/h | 0.37kw
Oil consumption: 15-26kg/h |
| Voltage | 380v/220v | 380v/220v | 380v/220v | 380v/220v | 380v/220v |
Incinerator Flue Gas Emission Standard
| No. | Pollutant name | Measuring unit | Data |
| 1 | Blackness of Flue Gas | Ringelmann class | Ⅰ |
| 2 | Smoke & Dust | mg/m3 | 100 |
| 3 | CO | mg/m3 | 100 |
| 4 | SO2 | mg/m3 | 400 |
| 5 | HF | mg/m3 | 9.0 |
| 6 | HCL | mg/m3 | 100 |
| 7 | NO2 | mg/m3 | 500 |
