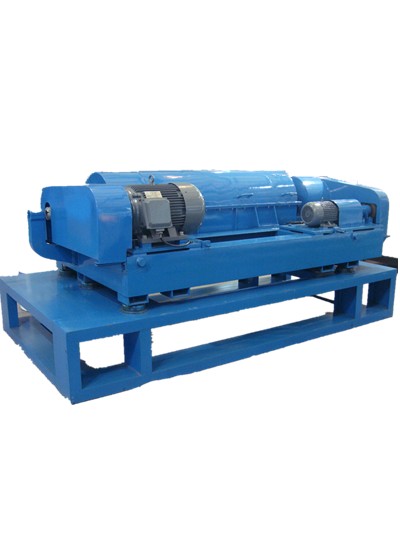

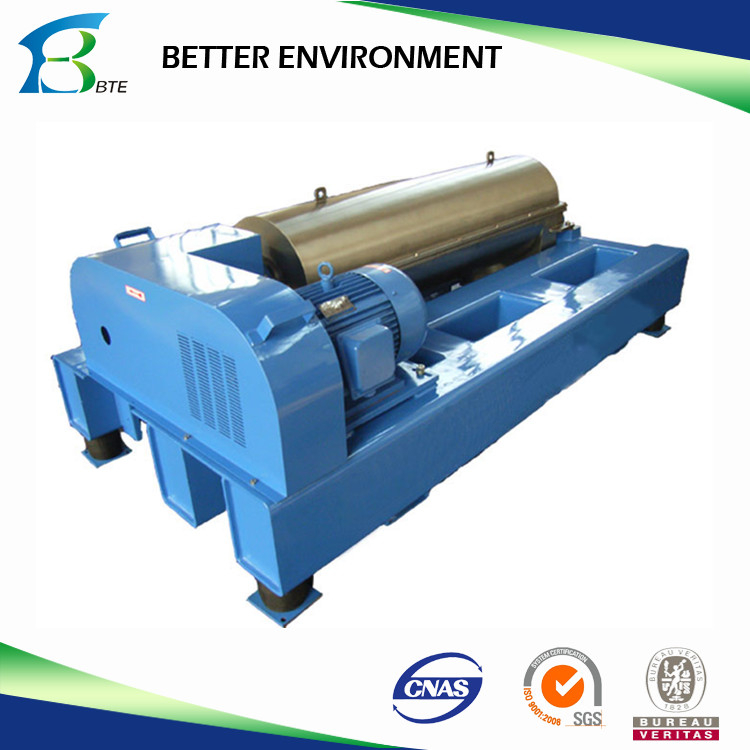

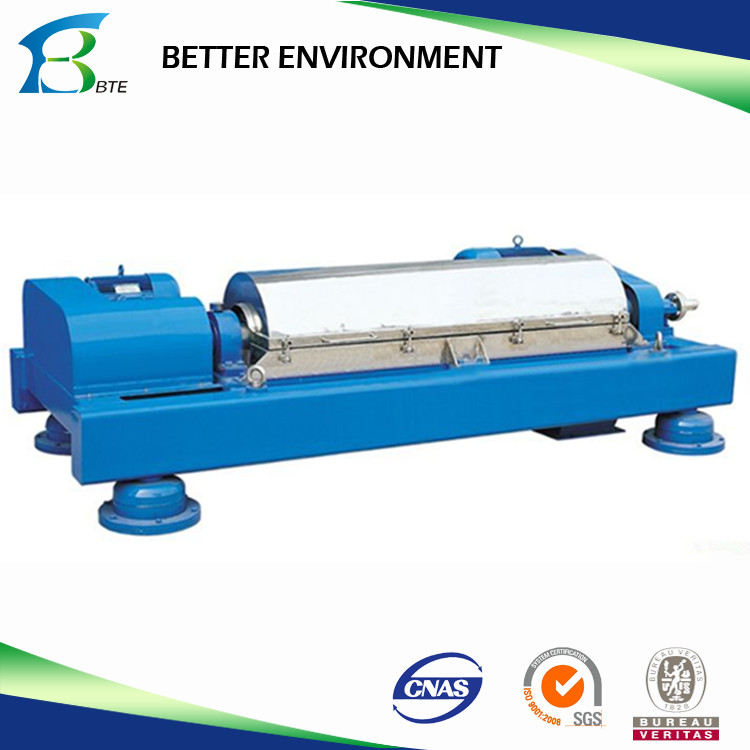

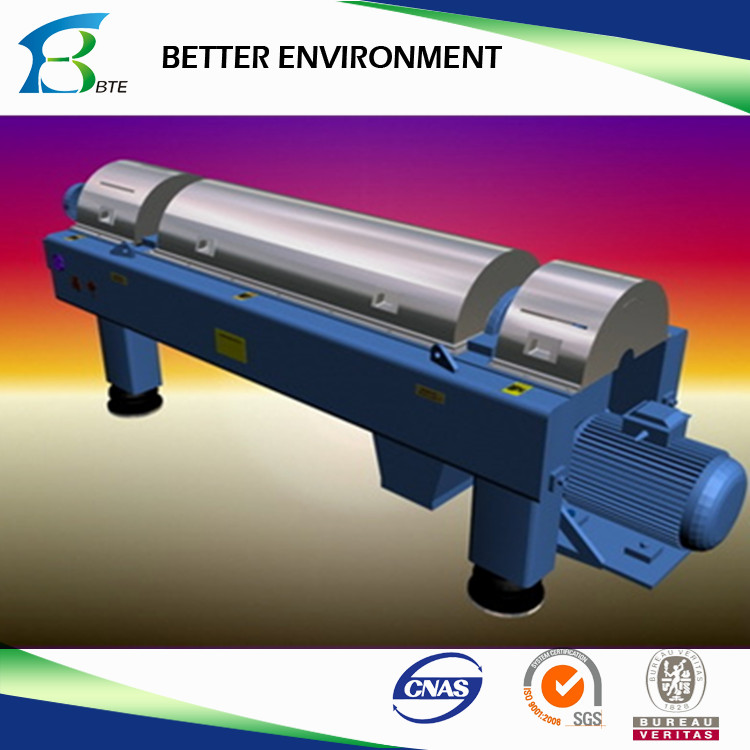

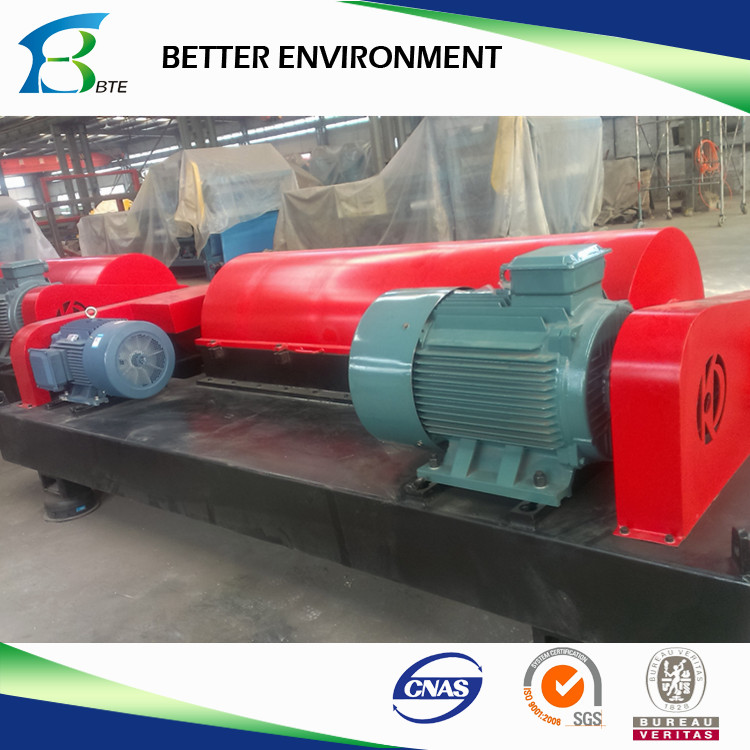

Horizontal Type Spiral Centrifugal Machine
Horizontal type spiral precipitated centrifugal machine is called horizontal type spiral centrifugal machine for short.
It is a high efficiency horizontal type spiral centrifugal equipment for discharging and separation and precipitation.
Generally, it can be divided into horizontal type spiral filtering centrifugal machine and horizontal type spiral precipitated
centrifugal machine. It is widely used for dehydration for the sludge in industrial and domestic sewage, besides,
it is also used in chemical industrial, pharmacy, food and environmental protection industry, etc. With a certain differential, drum and spiral rotate equidirectionally in a high speed. The material is introduced into the spiral internal
cylinder through feed tube, then enters into the drum in a faster speed. Under the effect of centrifugal field, the heavy solid
phase content will form a sediment layer on the drum wall. The spiral will transport the solid phase content to the cone part
on drum and discharge through the bleed hole. The light liquid phase content will form a inlayer liquid ring and overflow out of
the drum from the big end and discharge through the bleed hole. This machine can continuous feed in, separate, wash and discharge in the full speed of running.
![图片100.jpg]()
1. Well adaptability: In process we fully considered the special requirements of the material, the technology to centrifuge,
and we adopt the optimization design of the specificity, controllability implementation to main components
2. High automaticity: The feeding, separation and discharge of the machine are all automatically proceeded in a high speed.
The programmable logic controller realize the dynamic control of centrifugal separation and the process of centrifugal washing.
3. Stable operation: The differential mechanism we adopt is the cycloid gear differential mechanism or the planet gear differential
mechanism, which features in big torsion and wide adjustable range, etc.
4. Strong technology: adopt the double motor double frequency conversion energy feedback differential rotate speed control system,
which can flexibly stepless regulate the differential rotate speed. Meanwhile, the speed can be adjusted according to different material,
it is the real energy saving product.
5.Good operating environment: the separation process is finished in a fully enclosed condition, thus ensure the operation site neat and no pollution,
and maintain the clean production environment, realize the civilization production.
6. Complete and reliable safety protection devices: it is equipped with torsion protection and power control protection, etc,
which can effectively eliminate or reduce sudden fault on the damage caused by the machine.
7. Attractive appearance: the engine base is weld by the high quality carbon steel, with special craft processing, the surface is smooth,
compact,, beautiful and show an integral aesthetic feeling. ![Technical Parameter.png]()
