Waste incineration is not suitable for every waste stream, and different types of waste should not be treated as if they behave the same way inside an incinerator.
Medical infectious waste, pathological waste, industrial hazardous waste, municipal solid waste, and animal carcasses can differ greatly in moisture, calorific value, ash content, chemical composition, combustion behavior, and emission-control requirements.
For this reason, selecting a waste incinerator should begin with the waste itself.
A suitable system needs to answer several questions:
What type of waste will be treated?
How much waste is generated per hour or per day?
Is the waste wet, dry, combustible, or high in ash?
Does it contain chlorine, heavy metals, chemicals, or pharmaceuticals?
What emission limits apply at the installation site?
Is continuous operation required, or is batch treatment sufficient?
The right incinerator is not simply the unit with the highest temperature. It is the system that matches the waste characteristics, required treatment capacity, combustion conditions, and local environmental requirements.

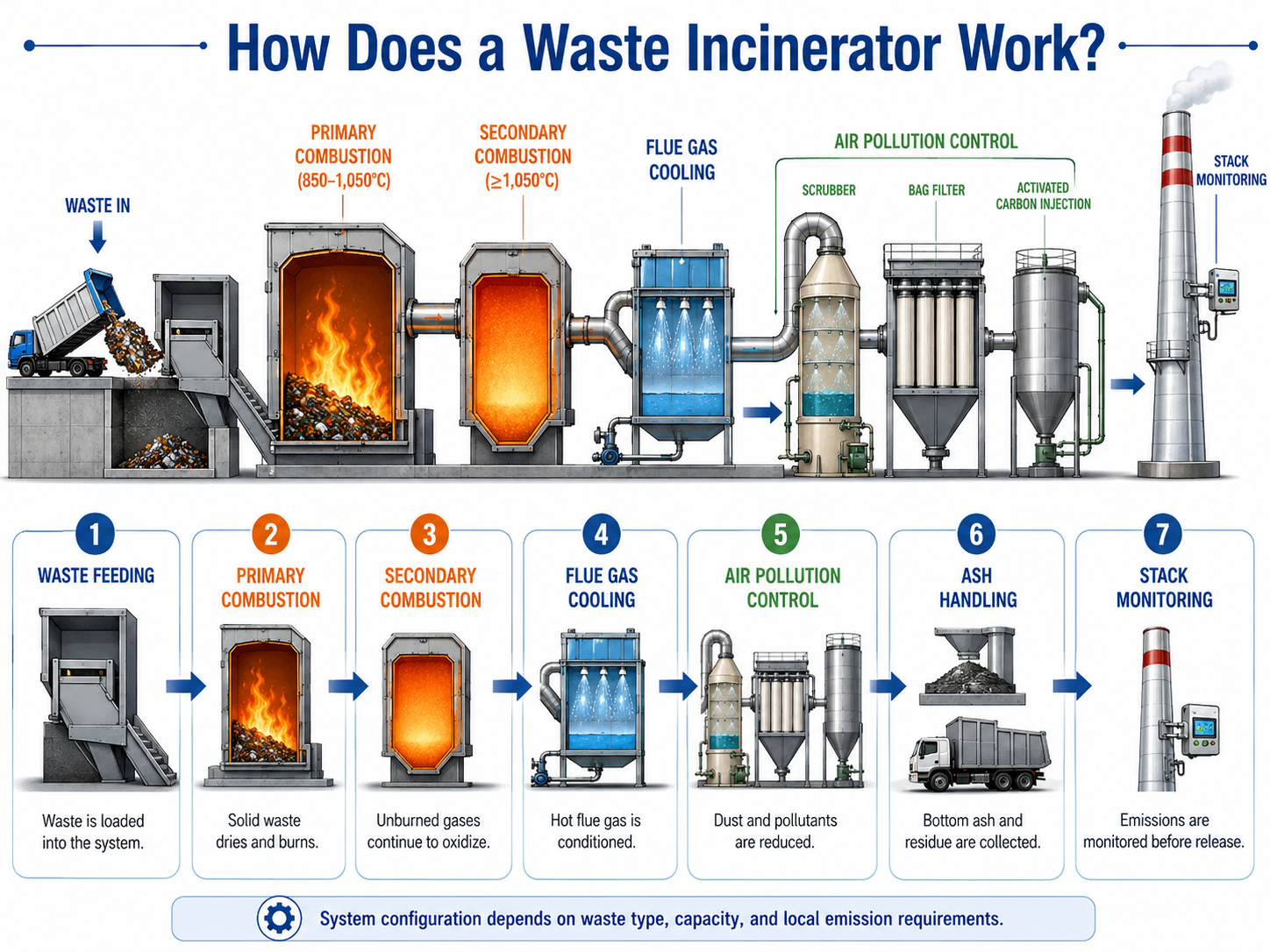

A typical waste incineration process may include:
Waste Feeding → Primary Combustion → Secondary Combustion → Flue Gas Cooling → Air Pollution Control → Ash Handling → Stack Monitoring
The combustion system may use a static hearth, rotary kiln, moving grate, fluidized bed, or another furnace configuration depending on the application.
However, incineration is only one waste-treatment option.
Some healthcare waste can be treated by autoclaving, steam, microwave, or other approved non-incineration methods. Large municipal waste systems may use dedicated waste-to-energy plants, while industrial hazardous waste may require specialized high-temperature systems and more advanced flue-gas control.
The first step is therefore to decide whether incineration is appropriate before choosing the equipment.
Table of Contents
Incineration is mainly used when thermal destruction, volume reduction, sterilization, or destruction of hazardous organic compounds is required.
Common applications include:
Waste Type | Typical Treatment Approach | Main Design Concern |
|---|---|---|
Medical infectious waste | Incineration or approved non-incineration treatment | Pathogen control and emissions |
Pathological waste | Controlled thermal destruction | Complete combustion of tissue |
Pharmaceutical waste | Specialized incineration | Destruction of organic compounds |
Cytotoxic waste | High-temperature specialized treatment | Hazardous chemical destruction |
Industrial hazardous waste | Rotary kiln or specialized system | Variable composition and acid gases |
Domestic waste | Small or medium incinerator for suitable applications | Moisture and mixed composition |
Municipal solid waste | Moving grate / fluidized bed at large scale | Continuous throughput and energy recovery |
Animal carcasses | Animal incinerator / static hearth | Moisture, odor and loading |
Pet remains | Small batch incinerator or cremation system | Controlled individual or communal treatment |
This table is only a general guide.
Waste classification and legal disposal requirements should always be checked against local regulations before selecting the treatment route.
Although equipment designs vary, most incineration systems follow the same basic treatment logic.
Waste enters the primary combustion chamber through manual, mechanical, hydraulic, or automatic feeding equipment.
The feeding method depends on:
Waste size
Waste weight
Required throughput
Safety requirements
Whether the waste is bagged, loose, liquid, or bulky
Small medical or animal incinerators may use batch loading.
Larger industrial systems often require controlled mechanical feeding to maintain a more stable combustion rate.
Feed control is important because excessive loading can reduce oxygen availability and chamber temperature.
The first combustion chamber provides the conditions for drying, volatilization, pyrolysis, and combustion of the solid waste.
During this stage:
Moisture evaporates
Volatile compounds are released
Organic solids begin to burn
Remaining material is converted into ash and combustion gases
The required operating temperature depends on the waste type, furnace design, and regulatory requirements.
Very wet waste may need more auxiliary fuel, while dry, high-calorific waste may provide more of its own combustion energy.
Stable operation depends on controlled air supply and feed rate, not temperature alone.
Combustion gases leaving the primary chamber may still contain unburned organic compounds.
A secondary combustion chamber provides additional:
Temperature
Oxygen
Mixing
Residence time
This helps improve gas-phase combustion before the flue gas enters the downstream treatment system.
The exact temperature and residence-time requirements depend on local regulations and the type of waste being treated.
For some regulated healthcare or hazardous-waste applications, higher combustion temperatures and stricter secondary-chamber conditions may be required.
After combustion, hot flue gas may need to be cooled before entering certain pollution-control devices.
Cooling can help:
Protect downstream equipment
Control gas temperature
Improve pollutant capture
Support safe filtration or adsorption
The cooling method depends on the overall plant design.
Possible approaches include heat recovery, air cooling, water-based quenching, or other gas-conditioning methods.
Incineration does not end when the waste has burned.
The flue gas must also be managed.
Depending on the waste and emission requirements, the system may need to control:
Dust
Fine particulate matter
Acid gases
Heavy metals
Organic pollutants
Dioxins and furans
NOx
The required equipment depends on the pollutants expected in the gas.
Incineration produces both bottom ash and, in many systems, air-pollution-control residue.
These materials should be collected and managed separately.
Ash may require testing before reuse or disposal, especially when the original waste contains hazardous chemicals, heavy metals, or medical contaminants.
Monitoring requirements vary with plant size, waste category, permit conditions, and local regulation.
Large regulated facilities may require continuous monitoring of selected parameters.
Smaller systems may operate with a combination of:
Temperature monitoring
Oxygen monitoring
Periodic stack testing
Fuel and combustion records
Operational inspection
Monitoring should be designed around the permit requirements of the installation site.
Waste combustion is often explained using three basic factors:
Temperature, Time and Turbulence.
These three conditions work together.
The combustion chamber must provide enough heat to support stable oxidation of the waste and combustion gases.
However, simply increasing burner temperature does not guarantee complete combustion.
Waste and combustion gases need sufficient time inside the combustion zone.
If material moves through the system too quickly, combustion may remain incomplete.
Good mixing between oxygen and combustion gases supports more complete oxidation.
Poor mixing can leave unburned compounds even when chamber temperature appears adequate.
A stable incinerator therefore depends on the combined control of fuel, air, feed rate, residence time, and gas mixing.
Not all waste generated in hospitals or clinics is hazardous.
Healthcare facilities generate both ordinary non-hazardous waste and smaller quantities of infectious, pathological, pharmaceutical, chemical, and other hazardous waste.
The treatment route should therefore begin with segregation.
General non-hazardous healthcare waste may be treated similarly to ordinary municipal or commercial waste, depending on local rules.
It should not automatically enter a medical incinerator simply because it came from a hospital.
Infectious waste may be treated by approved methods such as:
Autoclaving
Steam treatment
Microwave treatment
Other sterilization processes
Incineration
The suitable method depends on the waste composition and applicable regulation.
Incineration may be selected when thermal destruction is required or when the waste cannot be safely treated by non-incineration technology.
Human or animal tissues, organs, and similar materials generally require controlled treatment.
Incineration is commonly considered because it can thermally destroy the organic material and reduce the remaining volume.
The equipment should be able to handle the high moisture and dense organic content of the waste.
Expired or rejected pharmaceutical products need more careful evaluation.
Some products may require specialized high-temperature treatment rather than a conventional small medical incinerator.
The chemical composition should be understood before treatment.
Cytotoxic or chemotherapy-related waste can contain hazardous compounds that require specialized disposal.
These wastes should not be treated as ordinary infectious waste.
The incineration system, combustion conditions, and flue-gas controls should be selected according to the applicable hazardous-waste requirements.
Incineration is useful, but it is not the only treatment option.
Treatment Method | Suitable For | Main Limitation |
|---|---|---|
Autoclave | Many infectious healthcare wastes | Does not destroy all chemical compounds |
Steam treatment | Selected infectious waste | Requires segregation |
Microwave treatment | Suitable infectious wastes | Requires controlled preprocessing |
Chemical disinfection | Selected liquid or infectious waste | May create secondary liquid waste |
Incineration | Pathological, pharmaceutical, selected hazardous and mixed combustible waste | Requires emission control |
Landfill after treatment | Approved non-hazardous residue | Does not destroy hazardous constituents |
The correct approach depends on the waste category.
A well-designed healthcare waste system may use several treatment methods rather than sending every waste stream to one incinerator.
Industrial waste can be far more variable than medical or domestic waste.
Possible materials include:
Chemical sludge
Contaminated packaging
Paint residue
Oil-containing solids
Organic process waste
Solvents
Resin waste
Industrial filter media
Off-spec products
The statement “it burns” is not enough to determine whether a waste can safely enter an incinerator.
Before treatment, important properties should be checked.
Chlorinated waste can increase acid-gas and corrosion concerns.
It may also require more advanced flue-gas treatment.
Waste containing mercury, lead, cadmium, chromium, or other metals may produce contaminated ash or flue-gas pollutants.
High-calorific waste can release substantial heat.
Low-calorific or wet waste may require more auxiliary fuel.
High moisture increases the energy required to dry the waste before stable combustion occurs.
Waste with high mineral content creates more solid residue and may affect furnace operation.
Different waste streams should not be mixed without understanding how they may react.
Some industrial wastes require specialized materials, handling systems, or dedicated furnace designs.
Unknown industrial waste should not be fed into an incinerator simply because it appears combustible.
Proper characterization is essential.
Rotary kiln incinerators are commonly considered for complex industrial and hazardous-waste applications.
The rotating kiln helps move and mix material through the combustion zone.
This can make rotary kilns suitable for:
Mixed solids
Sludges
Packaged waste
Industrial residues
Hazardous combustible waste
A secondary combustion chamber is normally used after the kiln to continue gas-phase combustion.
Rotary kilns are flexible, but they are also more complex than small static-hearth systems.
Their use should therefore be justified by waste variability, required throughput, and regulatory requirements.
Domestic waste incineration covers very different project sizes.
A small remote facility and a city-scale municipal waste-to-energy plant should not be treated as the same application.
Small incinerators may be considered where:
Waste volumes are limited
Landfill access is difficult
Transport costs are high
Remote treatment is required
Examples may include isolated facilities, camps, islands, or special industrial sites.
Waste segregation is still important because high-moisture or non-combustible materials can increase fuel consumption and reduce combustion stability.
Large municipal solid waste systems typically require continuous-operation technologies such as:
Moving grate furnaces
Fluidized beds
Waste-to-energy systems
These plants are designed for much higher throughput and usually include extensive:
Waste reception systems
Boiler or heat-recovery equipment
Flue-gas treatment
Ash handling
Monitoring systems
They should not be compared directly with small batch waste incinerators.
Animal waste introduces different challenges from dry municipal waste.
Carcasses contain significant moisture and dense organic tissue.
The incinerator therefore needs sufficient heat input, chamber volume, and combustion time to avoid unstable burning.
Agricultural applications may involve:
Poultry
Pigs
Sheep
Cattle
Farm mortality
Veterinary waste
Important design factors include:
Largest carcass size
Daily mortality rate
Loading method
Chamber dimensions
Fuel demand
Biosecurity
Odor and smoke control
For larger animals, the loading door and chamber dimensions can be just as important as the nominal kg/h capacity.
Pet cremation has different operational requirements.
Facilities may need:
Individual cremation
Communal cremation
Controlled ash recovery
Small batch operation
Reduced visible smoke
Odor control
The equipment should therefore be selected around operating practice rather than only treatment capacity.
Different furnace designs suit different waste streams.
Incinerator Type | Suitable Applications | Main Strength |
|---|---|---|

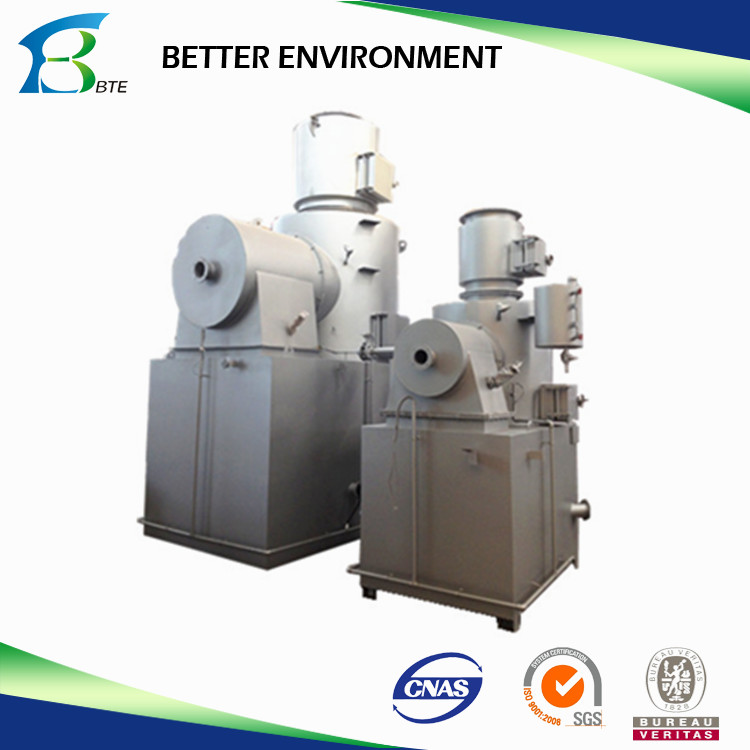

Static hearth / fixed chamber | Medical, animal, pet and small batch waste | Simple batch operation |
Rotary kiln | Industrial and hazardous waste | Handles variable solids and sludge |
Moving grate | Municipal solid waste | Continuous large-scale throughput |
Fluidized bed | Prepared homogeneous waste and sludge | Good mixing and combustion |
Specialized liquid incinerator | Liquid industrial waste | Controlled liquid injection |
There is no single furnace type that is best for all waste.
The choice should reflect:
Waste composition
Particle size
Moisture
Throughput
Required operating mode
Emission requirements
Available budget and space
Flue-gas treatment should be designed around the expected pollutants.
Not every incinerator needs the same pollution-control system.
Possible equipment includes:
Cyclones
Bag filters
Other particulate filtration systems
Cyclones are more useful for larger particles, while finer particulate matter may require higher-efficiency filtration.
Waste containing chlorine, sulfur, or other acid-forming compounds may generate gases such as HCl or SO₂.
Possible control methods include:
Dry sorbent injection
Semi-dry scrubbers
Wet scrubbers
Activated carbon may be used in some systems to help capture:
Mercury
Selected organic compounds
Dioxins and furans
Its effectiveness depends on gas temperature, dosage, pollutant concentration, and downstream filtration.
Control does not depend on one device alone.
Important factors may include:
Stable combustion
Appropriate secondary combustion
Flue-gas cooling
Activated carbon
Effective particulate filtration
NOx emissions can be influenced by combustion temperature, oxygen level, and waste composition.
Depending on the project, combustion optimization or dedicated NOx-control technology may be required.
Incineration reduces the volume of combustible waste, but it does not make all residues harmless.
Two main residue streams may remain:
Bottom ash is collected from the furnace after combustion.
Its composition depends on the original waste.
Dust, sorbents, activated carbon, and captured pollutants may accumulate in the flue-gas treatment system.
This material can be more concentrated in certain contaminants than the bottom ash.
Before reuse or disposal, ash should be characterized according to local waste regulations.
Residue from hazardous, chemical, or medical waste may require controlled disposal.
A useful equipment quotation requires more than the statement:
“We need an incinerator.”
The following information helps determine the correct system.
Specify whether the waste is:
Medical
Pathological
Pharmaceutical
Industrial
Domestic
Animal
Pet
Mixed
Provide:
kg/hour
kg/day
Operating hours
Batch size
Daily capacity alone may not show the required chamber size.
Wet waste burns very differently from dry packaging or plastic-rich waste.
If available, provide the lower heating value or an approximate waste composition.
This is particularly important for:
Animal carcasses
Large bags
Industrial containers
Bulky waste
High ash content affects residue handling and furnace capacity.
This can influence corrosion and air-pollution-control requirements.
For industrial waste, provide available information on:
Metals
Solvents
Acids
Oils
Chemicals
Reactive materials
Common auxiliary fuel options may include gas, diesel, or other locally available fuels depending on the burner design.
This is one of the most important project inputs.
The emission standard determines whether the system requires basic or more advanced flue-gas treatment.
Site dimensions affect:
Furnace layout
Chimney
Flue-gas equipment
Waste storage
Ash handling
Maintenance access
High temperature alone does not guarantee good combustion.
Air supply, residence time, mixing, feed rate, and waste properties are equally important.
General healthcare waste, infectious waste, pathological waste, and pharmaceutical waste may require different treatment routes.
Wet waste can dramatically increase fuel demand.
Industrial waste should be characterized before treatment.
Unknown chemicals can create serious combustion, corrosion, and emission problems.
The furnace is only one part of the incineration system.
Air-pollution-control equipment may be equally important.
Incineration reduces waste volume but still creates residue.
Ash management should be considered during equipment selection.
Waste density, moisture, size, and calorific value all affect real throughput.
Two wastes with the same weight can behave very differently in the furnace.
Incineration can be used for selected medical, pathological, pharmaceutical, industrial, municipal, animal, and other combustible wastes.
The exact suitability depends on waste classification and local regulation.
No.
Many infectious healthcare wastes may be treated by autoclave, steam, microwave, or other approved technologies.
Incineration is more relevant where thermal destruction is required or other methods are not suitable.
There is no single global temperature that applies to every waste type.
Required temperatures depend on waste composition, equipment design, and local regulatory requirements.
The primary chamber handles the solid waste.
The secondary chamber provides additional combustion of gases released from the primary chamber.
No.
Rotary kilns are useful for variable industrial and hazardous waste, but fixed-chamber systems can be more suitable for smaller medical, animal, or batch applications.
No.
Combustible material is converted mainly into gases and ash.
Bottom ash and flue-gas-treatment residues still require proper handling.
This depends on the waste and emission requirements.
Possible systems include cyclones, scrubbers, activated carbon, bag filters, and other pollution-control equipment.
At minimum, provide:
Waste type
Capacity
Moisture
Waste size
Operating hours
Fuel
Required emission standard
Installation location
For industrial waste, chemical composition should also be provided whenever possible.
Choosing the right waste incinerator starts with understanding the waste type and operating requirements.
Medical, industrial, municipal, animal, and pet waste may require different combustion conditions, capacities, flue-gas treatment, and ash handling systems. Local emission standards should also be considered during system design.
Incineration can reduce waste volume and destroy suitable waste safely, but some materials may be better treated by sterilization, recycling, biological treatment, or other methods.
Shandong Better Environmental Protection Technology Co., Ltd. provides waste incineration and environmental treatment equipment for different applications. Systems can be configured according to waste type, capacity, site conditions, fuel supply, and emission requirements.
The best incineration system is the one designed around the actual waste and operating conditions.
