Cavitation Air Flotation Machine Starch wastewater can be difficult to treat because it often contains both suspended solids and dissolved organic matter. Depending on the production process, wastewater may include starch particles, fibers, proteins, sugars, fine solids, and cleaning residues.
The first treatment decision should therefore not be based on COD alone.
A wastewater stream with high suspended solids may respond well to screening, coagulation, flocculation, and air flotation. A stream with relatively low TSS but high dissolved COD will depend more heavily on biological treatment. In many starch plants, both treatment needs exist at the same time.

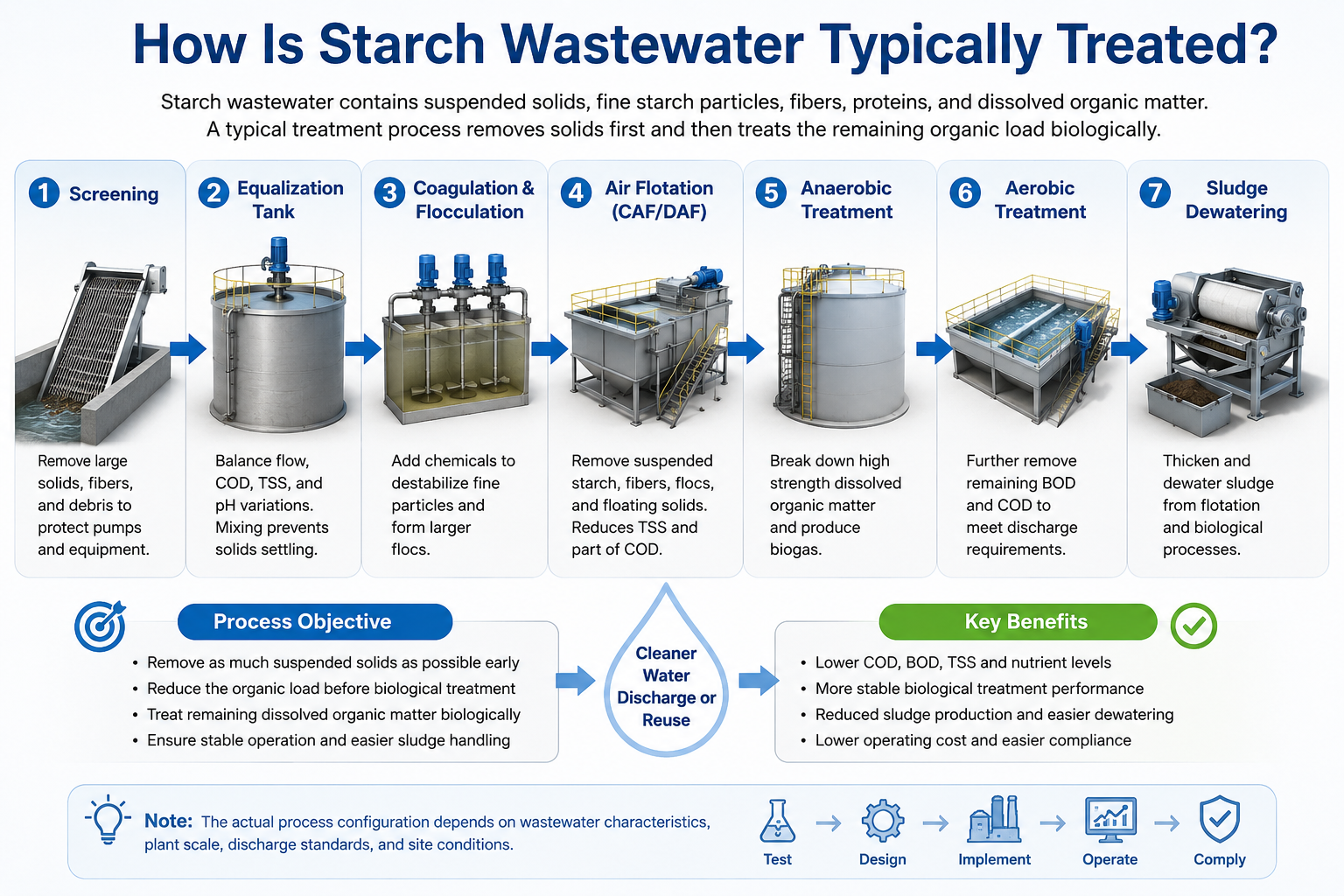

A typical starch wastewater treatment process may include:
Screening → Equalization → Coagulation & Flocculation → Air Flotation → Anaerobic Treatment → Aerobic Polishing → Sludge Dewatering
The exact process depends on the wastewater source, organic loading, suspended solids, flow variation, biodegradability, discharge requirements, and available space.
The key is to separate what can be removed physically from what must be degraded biologically.
Table of Contents
Starch wastewater varies considerably between corn starch, potato starch, cassava starch, wheat starch, modified starch, and other food-processing operations.
The production stage also matters.
Water generated during raw material washing is very different from wastewater produced during starch separation, protein recovery, equipment cleaning, or concentrated product loss.
Wastewater Source | Common Contaminants | Main Treatment Concern |
|---|---|---|
Raw material washing | Soil, sand, fibers, suspended solids | Coarse solids removal |
Crushing and grinding | Fibers, starch particles, organic solids | High TSS |
Starch separation | Fine starch, suspended solids, dissolved organics | TSS and COD |
Protein separation | Protein and organic matter | COD and BOD |
Equipment washing | Starch residue, cleaning water, variable solids | Flow and load fluctuation |
Product losses | Concentrated starch and organic matter | Sudden high COD |
Mixed plant wastewater | Suspended and dissolved pollutants | Combined treatment |
This is why a treatment system should not be selected from an industry average alone.
The wastewater should be tested under representative production conditions.
A plant processing different raw materials or operating in batches may see substantial changes in wastewater quality during the same day.
High COD is one of the most common concerns in starch processing wastewater.
However, COD does not tell you exactly what the pollutant is.
Some COD is associated with suspended starch, fibers, proteins, and other particles. This portion may be reduced when those solids are physically removed.
Another portion remains dissolved in the water.
This may include:
Soluble starch components
Sugars
Organic acids
Dissolved proteins
Other biodegradable organic matter
These contaminants cannot simply be screened or floated out.
This distinction is important.
Particulate COD can often be reduced through:
Screening
Sedimentation
Coagulation
Flocculation
Air flotation
Dissolved COD usually requires:
Anaerobic treatment
Aerobic biological treatment
Or a combination of both
This explains why two wastewater streams with the same COD concentration may require different treatment systems.
One may contain a large amount of recoverable or separable solids.
The other may look relatively clear but still contain a high dissolved organic load.
Good wastewater treatment starts with good data.
Before choosing a flotation unit, biological reactor, or complete treatment system, several parameters should be evaluated.
Measure both:
Average flow
Peak flow
Peak flow is especially important in batch processing plants.
A wastewater system sized only for daily average flow may become unstable during washing, draining, or concentrated discharge periods.
COD indicates the total oxidizable load.
BOD helps show how much of the organic pollution may be biodegradable.
The relationship between COD and BOD can help engineers decide how much biological treatment is likely to be required.
TSS provides important information about whether primary solids removal should be prioritized.
High TSS may indicate the presence of:
Starch particles
Fibers
Soil
Protein solids
Other process residues
Biological treatment performance can be affected by significant pH or temperature variation.
These parameters should therefore be evaluated over the production cycle rather than from one isolated sample.
One wastewater sample collected during stable production may not represent actual plant conditions.
It is useful to understand:
Batch changes
Washing cycles
Product changeovers
Shutdown and startup periods
High-loss production events
These conditions can create short-term shock loads that influence treatment design.
There is no single treatment process suitable for every starch plant.
However, most systems follow the same general logic:
Remove coarse solids first, stabilize the flow, separate fine suspended material, then treat the remaining dissolved organic load.
Screening is usually the first treatment stage.
It protects pumps, pipelines, tanks, and downstream equipment from large solids.
Depending on the raw material and production process, screens may remove:
Fibers
Peel fragments
Soil particles
Coarse starch residues
Packaging debris
Other large solids
Selecting the correct screen opening depends on the size and nature of the solids.
A very fine screen can improve solids capture, but it may also require more frequent cleaning.
The goal is to remove material that does not need to enter the rest of the treatment system.
Equalization is especially important in starch production because wastewater flow and pollutant concentration can change quickly.
For example, normal production may generate a relatively consistent wastewater stream.
Then a cleaning cycle begins.
Flow increases and a concentrated amount of starch residue may enter the wastewater system within a short period.
Without equalization, downstream treatment equipment receives this shock directly.
An equalization tank helps smooth changes in:
Flow
COD
TSS
pH
Temperature
Mixing is usually required to keep solids suspended and prevent uneven settling inside the tank.
Equalization can also improve chemical dosing because the influent becomes more consistent.
Very fine starch particles and colloidal material may not separate easily by screening or gravity alone.
Coagulation and flocculation help convert these small particles into larger, separable flocs.
A coagulant destabilizes fine particles.
A flocculant helps bind them together.
This process can improve the performance of downstream flotation.
However, chemical dosage should not be copied directly from another wastewater project.
The required dose may change with:
pH
TSS
Starch concentration
Protein content
Temperature
Production additives
Jar testing is often useful for selecting an initial chemical program.
The best operating point is not necessarily the condition that produces the clearest water at the highest chemical dose.
Chemical cost, sludge production, and treatment stability should also be considered.
Air flotation is useful when the wastewater contains a significant amount of fine suspended material that is difficult to settle.
This may include:
Fine starch particles
Fibers
Protein-containing solids
Grease
Suspended organic matter
Chemically formed flocs
Air bubbles attach to or interact with suspended solids and move them toward the water surface.
The floated sludge is then removed mechanically.
For starch wastewater, flotation is often used as a primary treatment step before biological treatment.
Its role is not to eliminate all COD.
Its role is to reduce the suspended load so that the biological system receives a more manageable influent.
A Cavitation Air Flotation Machine may be considered when flotation matches the wastewater characteristics, required capacity, and plant layout.
When wastewater contains a high concentration of biodegradable dissolved organic matter, anaerobic treatment may become important.
Anaerobic microorganisms break down organic material without the continuous oxygen supply required by aerobic systems.
This can be advantageous for high-strength wastewater.
Common anaerobic treatment technologies may include:
UASB reactors
EGSB reactors
Anaerobic contact systems
Other high-rate anaerobic reactors
Anaerobic treatment is often considered when COD loading is sufficiently high and the wastewater is biodegradable.
One benefit is that part of the organic matter can be converted into biogas.
However, anaerobic treatment is not automatically suitable for every starch plant.
Performance depends on:
Organic loading
Temperature
pH
Nutrient balance
Toxic or inhibitory substances
Hydraulic stability
Wastewater biodegradability
Pretreatment can help improve operating stability by reducing excessive suspended solids before wastewater enters the biological stage.
Anaerobic treatment may remove a significant part of the organic load, but residual COD and BOD can remain.
Aerobic treatment is commonly used for further polishing.
Possible technologies include:
Activated sludge
MBBR
MBR
SBR
Integrated biological systems
The correct process depends on required discharge quality, available space, energy consumption, and operating experience.
Aerobic treatment generally works best when upstream treatment has already removed large solids and extreme shock loads.
This is another reason why pretreatment and equalization are important.
Every solids-removal process creates sludge.
Starch wastewater treatment may generate sludge from:
Screening
Coagulation and flocculation
Flotation
Biological treatment
This sludge contains a large amount of water.
Before disposal or further handling, sludge is often thickened and dewatered.
Possible equipment includes:
Screw presses
Filter presses
Belt presses
Centrifuges
Sludge handling should be included in the original system design.
It should not be treated as a separate problem after the wastewater plant has already been built.
Air flotation is most useful when the wastewater contains a meaningful amount of suspended or floatable material.
Typical conditions include:
High TSS
Fine suspended starch
Fibrous material
Poorly settling solids
Protein or grease-containing wastewater
Chemically formed flocs
In these situations, flotation can reduce the solids load before biological treatment.
This may help:
Reduce downstream sludge loading
Improve biological stability
Lower the amount of non-dissolved material entering reactors
Improve overall process control
However, flotation is not a replacement for biological treatment when the wastewater contains a large dissolved organic load.
High suspended solids? Remove solids first.
High dissolved COD? Treat the organic load biologically.
High TSS and high COD? Combine the two approaches.
The treatment decision becomes easier when the wastewater is classified by its main problem.
Wastewater Condition | Main Treatment Focus |
|---|---|
High TSS, moderate dissolved COD | Screening + coagulation + flotation |
Low TSS, high biodegradable COD | Biological treatment |
High TSS + high COD | Flotation + biological treatment |
High biodegradable organic load | Consider anaerobic treatment |
Residual COD after anaerobic treatment | Aerobic polishing |
Large flow fluctuations | Equalization |
Strict reuse requirement | Additional tertiary treatment |
This table is only a starting point.
Actual treatment design should be based on laboratory analysis, production conditions, discharge standards, and pilot or jar testing when necessary.
Both cavitation air flotation and dissolved air flotation are used for industrial solid-liquid separation.
They should not be treated as identical technologies.
Dissolved air flotation typically uses a pressurized recycle stream to generate fine bubbles after pressure release.
It is widely used in industrial wastewater treatment and can provide effective separation when chemical conditioning and hydraulic design are appropriate.
Cavitation air flotation introduces air mechanically without relying on the same pressurized recycle mechanism.
A CAF system may offer a simpler equipment configuration in suitable applications.
The correct choice depends on:
Wastewater characteristics
Required solids removal
Hydraulic loading
Chemical treatment
Energy considerations
Installation space
Maintenance preference
Required effluent quality
Neither technology should be selected only because one is described as “better.”
The wastewater should determine the equipment choice.
Some starch plants have limited space for new wastewater infrastructure.
Others need to expand treatment capacity without constructing a large conventional treatment plant.
In these situations, a modular or integrated treatment unit may be considered.
A Compact Sewage Treatment Plant can combine several treatment functions into a smaller footprint, depending on the required configuration.
Compact treatment becomes particularly relevant when:
Existing food-processing plants may have little room for additional concrete basins.
A compact system can reduce the footprint required for certain biological treatment stages.
A modular configuration may allow treatment capacity to be expanded without redesigning the entire plant.
Prefabricated equipment can reduce some on-site civil construction requirements.
However, compact equipment does not remove the need for proper process design.
Hydraulic loading, biological retention time, oxygen demand, sludge production, and wastewater characteristics still determine performance.
Equipment selection should begin with wastewater data rather than product specifications.
Several factors deserve attention.
Consider both average and maximum flow.
For batch plants, peak discharge periods may determine the required equipment capacity.
Flow alone is not enough.
Two plants processing the same volume of water can generate very different COD and TSS loads.
Equipment design depends on where the treated water goes.
Possible destinations include:
Municipal sewer
Direct environmental discharge
Further treatment
Internal reuse
The required water quality may therefore change the number of treatment stages.
Space affects whether the plant can use conventional tanks, compact equipment, or vertical treatment configurations.
Ask how much sludge will be produced and how it will be dewatered.
Ignoring sludge management can create substantial operating problems later.
Chemical cost should be included when comparing treatment systems.
A process that appears simple but requires excessive coagulant and polymer may become expensive to operate.
Pumps, aeration equipment, mixers, and sludge systems all consume energy.
Treatment should therefore be evaluated using both capital cost and long-term operating cost.
COD is important, but it does not show how much pollution is suspended or dissolved.
TSS, BOD, and wastewater characteristics should also be evaluated.
Variable wastewater can make chemical treatment and biological treatment unstable.
Equalization is especially important in plants with batch production and frequent cleaning cycles.
Large quantities of suspended starch and fiber should be removed early when practical.
Biological reactors are more effective when they are not being used as primary solids separators.
Flotation mainly removes suspended and coagulated material.
Dissolved organic matter usually remains.
More chemical does not always improve treatment.
Overdosing can increase sludge production and operating cost.
Sludge storage, pumping, dewatering, and disposal should be included in the initial design.
Raw material washing water, starch separation wastewater, and cleaning wastewater may not require the same treatment intensity.
Separating or managing different streams can sometimes improve overall efficiency.
Starch processing releases starch, sugars, proteins, fibers, and other organic material into the wastewater.
Both suspended and dissolved organic matter contribute to COD.
Yes, when part of the COD is associated with suspended or coagulated solids.
Air flotation is less effective for COD that remains fully dissolved.
It depends on the wastewater.
If significant biodegradable dissolved COD or BOD remains after primary treatment, biological treatment is usually necessary.
It can be suitable for high-strength, biodegradable wastewater.
However, the organic loading, temperature, pH, nutrients, hydraulic conditions, and wastewater composition should be evaluated before selecting the process.
Both may be suitable for starch wastewater.
The choice depends on solids characteristics, treatment target, hydraulic design, chemical conditioning, installation conditions, and operating preference.
Potentially.
Reuse usually requires additional treatment depending on where the water will be used.
Filtration, membrane treatment, disinfection, or other polishing processes may be required.
A useful quotation should include:
Wastewater flow
Peak flow
COD
BOD
TSS
pH
Temperature
Wastewater source
Operating hours
Required discharge quality
Available installation area
Existing treatment equipment
The more representative the wastewater data, the more accurately the treatment system can be selected.
Effective starch wastewater treatment starts with identifying whether COD comes mainly from suspended solids or dissolved organic matter. Screening, coagulation, flocculation, and air flotation can remove starch particles, fibers, and other solids, while biological treatment handles more of the remaining dissolved COD.
For high-TSS and high-COD wastewater, combining primary solids removal with biological treatment is usually more effective than relying on one process alone.
Shandong Better Environmental Protection Technology Co., Ltd. provides wastewater treatment solutions for starch-processing plants, including air flotation, biological treatment, sludge handling, and compact treatment systems. Equipment can be selected based on flow rate, COD, TSS, available space, and discharge requirements.
