Industrial Wastewater Pre-Treatment DAF Dissolved Air Flotation Machine in Mexico

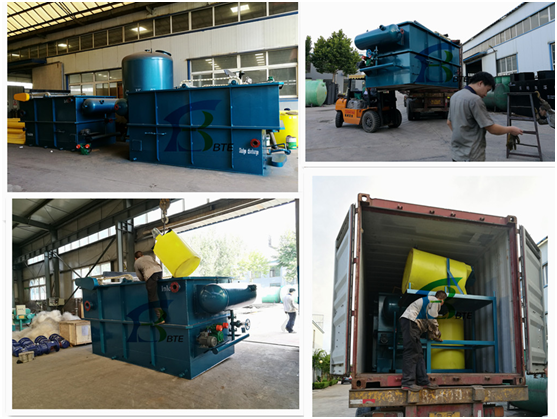

DAF Dissolved air flotation machine for industrial wastewater pre-treatment loading site photo in our factory.
Air flotation method is widely used in the sewage treatment field in recent years. By using this method, the light floc which is hard to be precipitated can be effectively eliminated.
The pollutant in the wastewater can be divided into soluble organics and unsoluble matter (SS). The soluble organics can be converted to be unsoluble matter under certain condition, this is one of the sewage/wastewater treatment methods. Using this method, the soluble organics can be converted to be unsoluble matter by coagulant and flocculants, thus achieving the goal of removing SS so as to purify the water.
The wastewater after dosing enters into the air floatation mixed zone, and contacts with the released dissolved gas water, thus make the floccules adhere to the micro-bubble and then flows into the air floating zone. The floccules rise to the surface of water as scum, some of the water reflows as the dissolved gas water and the other water flows into the clean water pool. The scum will be cleaned by the foam scraper.

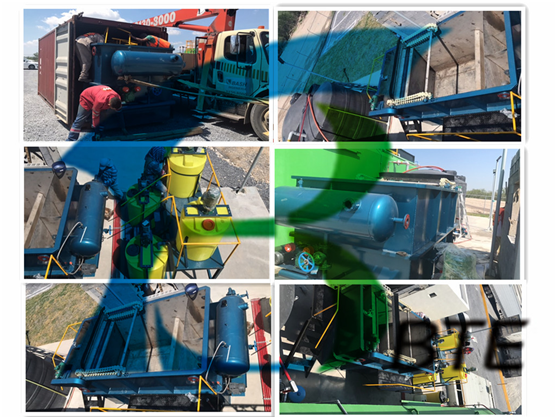

The client company wastewater pre-treatment plant unloading and installation site.
The client is a consultant company located in Monterrey city, Nuevo Leon, Mexico, they offer consultation services to client or undertake the solution of the whole project including supplying equipment, they also supply chemical to their clients.
The DAF wastewater treatment plant has been successfully operated with very good effect and attracted more attention of local customers.

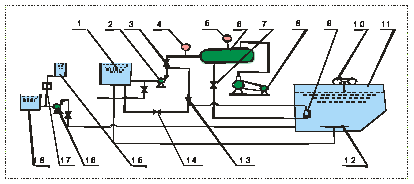

1. Clear water reservoir 2. Clear water pump 3. Control valve
4.5. Pressure gage6. Dissolved gas tank7. Control valve
8. Air compressor9. Releaser 10. Foam scraper
11. Air floating pond12. Water collector13. Jet device
14. Control valve15. Dosing tank16. Sewage pump
17. Flow meter18. Sewage pond

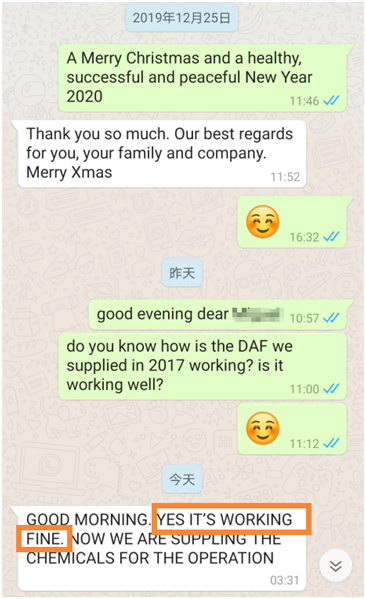

Attached photo is their good feedback after they operating the WWTP for 3 years.
