Activated sludge wastewater treatment uses living microorganisms to clean water. These microorganisms remove harmful organic pollutants from the water. People use this biological wastewater treatment because it works well. It helps treat wastewater and keeps clean water safe. The process breaks down contaminants in the wastewater. This makes the water safer for people and nature. This treatment is special because it changes dirty water into clean water. The clean water meets strict rules.
Table of Contents
Activated sludge uses tiny living things to clean dirty water. This makes the water safe for people and nature.
The process has many steps. One step is aeration. Oxygen is added to help bacteria break down bad stuff.
Monitoring tools are very important for keeping the system safe. Regular checks can stop expensive problems.
The activated sludge process can change to fit different types of dirty water. It can also meet different treatment needs.
Good sludge management is needed. Balancing return and waste sludge keeps the system working well.
Disinfection is the last step. It makes sure the cleaned water does not have harmful microorganisms before it goes out.
Picking the best wastewater treatment method depends on the site, money, and local rules.
Working with experts like Shandong Better can give you special solutions. They also offer help for good wastewater management.

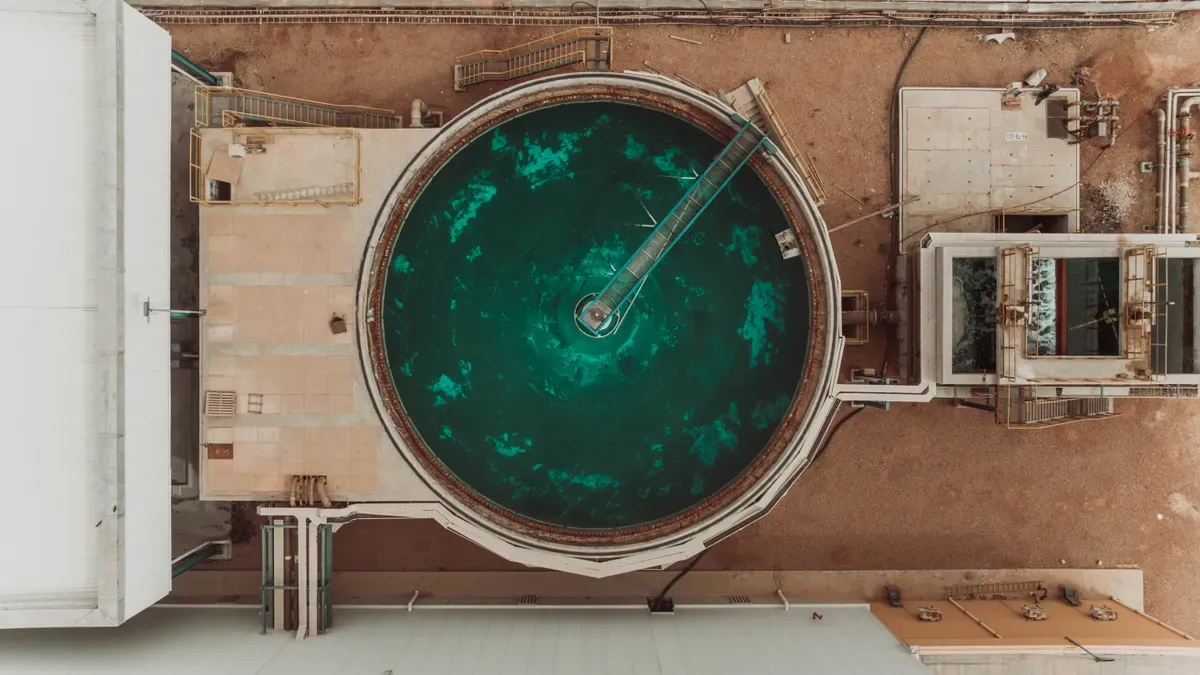

You clean water with activated sludge by using living microorganisms. These tiny creatures eat and break down organic pollutants in the water. When you mix wastewater with activated sludge, the process starts fast. Suspended and colloidal organic matter gets removed quickly. Microorganisms stick to these particles and start to digest them. This step lowers the biochemical oxygen demand, or BOD. BOD shows how much oxygen is needed to break down waste.
After this first step, the process becomes steady. Microorganisms use enzymes to change complex pollutants into simple compounds. This change gives energy to the microorganisms. The energy helps them grow and multiply. Because of this, activated sludge keeps cleaning the water. You can trust this process to remove harmful things. It makes water safer for people and nature.
Note: The activated sludge process uses both physical and biological actions. Microorganisms do most of the work to break down pollutants and keep the system working well.
People use activated sludge wastewater treatment to take out organic materials from wastewater. This method helps protect rivers, lakes, and oceans from pollution. The main goal is to lower harmful substances before water goes back to nature or gets reused.
Here are some important goals of using activated sludge in wastewater treatment plants:
Advantage | Description |
|---|---|
Reduction of undesired sludge | |
Self-reseeding with beneficial bacteria | Helpful bacteria grow back on their own. |
Longer emptying intervals | You can wait longer before emptying the tanks. |
Reliability | The process works well and does not fail easily. |
Simplicity | The process is easy to manage and understand. |
Cost reduction | You spend less money on treatment. |
Odorless process | The treatment does not make bad smells. |
You also get help from the biological process. Microorganisms break down organic materials. These organisms eat pollutants and turn them into safe byproducts. This step is important for lowering BOD. It gets the water ready for more treatment or safe release.
You will see some key words when you learn about activated sludge. Knowing these words helps you understand the process better.
Term | Definition |
|---|---|
Mixed Liquor Suspended Solids (MLSS) | This is the mix of wastewater and microorganisms in the tanks. You measure the amount of solids in milligrams per liter (mg/L). This helps you check if the process is working well. |
Sludge Age | This tells you how long the solids stay in the system. It is usually measured in days. Keeping the right sludge age helps keep microorganisms healthy. Most systems use 3 to 15 days for this. |
Food-to-Microorganism (F/M) Ratio | This ratio compares the amount of food (organic matter) to the amount of microorganisms in the aeration tank. You figure it out using BOD or COD tests. Most plants keep this ratio between 0.15 and 0.5 for good results. |
You can use these words to watch and control the activated sludge process. By knowing them, you can make better choices and keep the treatment system working well.
The first step is to take out big and heavy things from the wastewater. This is called preliminary treatment. It keeps the rest of the system safe and stops damage to equipment.
Screening: Screens catch large things like sticks, rags, and plastic. These things can block pipes or break pumps. Workers remove them right away.
Grit Removal: After screening, water goes into a grit chamber. Sand, gravel, and small stones settle at the bottom. These heavy bits sink because they are denser than water. Workers take out the grit so it does not harm moving parts.
This step makes sure only small particles and dissolved stuff move forward. Taking out these solids early helps the process work well.
Next, the water goes to a sedimentation tank. This is the primary treatment step. In this tank, water moves slowly so solids can settle.
The water sits still in the tank.
Heavy solids sink and make a layer of sludge.
Lighter things, like oils and grease, float up. Workers skim these off.
Primary clarifiers remove most settleable solids. They also take out about half of the suspended solids and some of the BOD. Removing these solids means less organic matter needs more treatment. The sludge here is thick and needs special care later.
Tip: Taking out solids early helps the activated sludge process work better. It also keeps the system from getting too full.
After sedimentation, water moves to the aeration tank. This is the main part of the activated sludge process. Here, water mixes with activated sludge full of helpful microorganisms. These tiny living things eat the rest of the organic pollutants.
Air is added to the tank with blowers or diffusers. This gives microorganisms the oxygen they need to live and grow. The oxygen level should stay between 2 and 3 mg/L. This helps bacteria break down organic matter fast and safely.
Microorganisms use oxygen to turn pollutants into carbon dioxide, water, and new cells.
If there is not enough oxygen, bacteria cannot work well. The process slows down.
The aeration tank is the best place for these organisms to clean the water.
The mix in the tank is called mixed liquor. It has water, sludge, and microorganisms. As the process goes on, microorganisms form clumps called flocs. These flocs help trap and break down more pollutants.
Note: Most organic matter is removed in the aeration tank. Microorganisms and the right amount of oxygen make this step work well.
You move the mixed liquor from the aeration tank to the secondary clarifier. This step lets you split the clean water from the sludge. The clarifier works by letting the heavy sludge sink to the bottom. The clear water goes up and leaves the tank for more treatment or release.
The main job of secondary clarification is to separate flocculated biomass from the treated water.
This step gives you cleaner water by taking out most of the microbial biomass after treatment.
Special tools, like spiral scrapers and suction headers, help remove solids better.
You need this step so the activated sludge process works right. If you skip it, the water will not be clean enough.
After you separate the sludge, you must decide what to do with it. The activated sludge process makes two types of sludge: return activated sludge (RAS) and waste activated sludge (WAS). You handle each type in a different way to keep the system balanced.
Description | |
|---|---|
Sludge Wasting | You control biomass by taking out extra sludge. This keeps the right amount of microorganisms in the system. |
Centrifuge Spin | You use this method to check mixed liquor and clarifier samples. It helps you measure mass balance and set RAS rates. |
Sludge Recirculation | You send some sludge back to the aeration tank. This keeps the process steady and keeps enough active microorganisms. |
You take some of the settled sludge from the bottom of the secondary clarifier and send it back to the aeration tank. This is called return activated sludge. RAS keeps the number of microorganisms high in the aeration tank. You need this step to make sure the process removes organic pollutants from the water. If you do not return enough sludge, the system will not work well.
You also remove some sludge from the system as waste activated sludge. WAS is the extra biomass that grows as microorganisms multiply. You must remove WAS often to keep the system balanced. If you do not waste enough sludge, the process can get overloaded. You usually send WAS to more treatment, like thickening, dewatering, or disposal.
After you separate and handle the sludge, you need to disinfect the treated water. Disinfection kills any leftover harmful microorganisms before you release the water into the environment.
Chlorine is a common disinfectant used after secondary treatment. You add chlorine to the water to kill bacteria and viruses.
UV light is another popular way. You use ultraviolet light to disinfect the water without chemicals.
Sometimes, you use three steps: first, disinfect with chlorine (bleach), then remove leftover chlorine with bisulfite.
You pick the disinfection method based on your needs and local rules. This last step makes sure the water is safe for people and nature.
You start the main treatment in the aeration tanks. These tanks hold the mixed liquor, which contains water and microorganisms. Air enters the tank through diffusers or mechanical aerators. This air gives oxygen to the bacteria. The bacteria use the oxygen to break down organic matter in the water. You must keep the right amount of oxygen in the tank. Too little oxygen slows down the process. Too much oxygen wastes energy.
When you design an aeration tank, you need to think about a few things:
Hydraulic Retention Time (HRT): This is the time water stays in the tank. If water stays too long, you waste energy and space. If it stays too short, you do not clean the water well.
Tank Volume: Bigger tanks can treat more water, but they cost more to build and run.
Aeration Method: You can use plug flow or completely mixed tanks. Plug flow tanks move water in one direction. Completely mixed tanks stir everything together. Each method affects how well you treat the water.
You must balance these factors to get the best results. Good aeration tanks help you remove most of the organic pollutants before the next step.
After the aeration tank, you send the water to the clarifiers. Clarifiers help you separate the solids from the clean water. These tanks use gravity to settle the solids at the bottom. The solids form a layer called the sludge blanket. The clear water rises to the top and flows out for more treatment.
Clarifiers work best when water moves slowly. Fast water can stir up the solids and make the water cloudy. You want laminar flow, which means water moves in smooth layers. This helps the solids settle without mixing back into the water.
You use special tools in clarifiers:
Scrapers: These move along the bottom and collect the settled sludge.
Skimmers: These remove floating materials from the surface.
You return some of the settled sludge to the aeration tank. You remove the rest as waste. This step keeps the system balanced and working well.
Sludge recycling is a key part of the activated sludge process. You take some of the settled sludge from the clarifier and send it back to the aeration tank. This keeps enough microorganisms in the system to treat new wastewater. You call this return activated sludge.
You also remove extra sludge from the system. This is waste activated sludge. If you do not remove enough, the system can get overloaded. If you remove too much, you lose the helpful bacteria. You must check the amount of sludge often and adjust as needed.
Sludge recycling helps you keep the right balance in your treatment plant. It makes sure the process runs smoothly and the water gets clean.
Tip: Always monitor the amount of sludge in your system. Good control means better treatment and less trouble later.
You need monitoring equipment to keep your activated sludge system working well. Good monitoring helps you find problems early. You can fix issues fast. This keeps your treatment plant safe and running smoothly.
There are different types of monitoring equipment. Each one has a special job. Here are some important examples:
Level Measurement: Level sensors check how much water or sludge is in tanks. These sensors help stop overflows. They also help you use storage space better. Knowing the levels helps you avoid spills and keep things clean.
Pressure Regulation: Pressure gauges and regulators watch the pressure in pipes and pumps. If pressure is too high or low, pumps can break or stop. Checking pressure keeps your system steady and saves money on repairs.
Temperature Regulation: Temperature sensors make sure tanks stay at the right temperature. Microorganisms work best at certain temperatures. If it gets too hot or cold, they slow down or die. Keeping the right temperature helps bacteria clean water faster.
Gas Detection Systems: Gas detectors keep workers safe. Some steps make dangerous gases like methane or hydrogen sulfide. Gas detectors warn you if gases get too high. This lets you act quickly and protect everyone.
Tip: Check and calibrate your monitoring equipment often. Well-maintained sensors give accurate data and help you avoid problems.
You can use other tools to watch your system:
Flow Meters: Flow meters measure how much water moves through pipes. This helps you balance flow and stop parts of the plant from getting overloaded.
Dissolved Oxygen Meters: These meters show how much oxygen is in the aeration tank. Microorganisms need enough oxygen to break down waste. If oxygen is too low, treatment slows down.
pH Meters: pH meters check if water is too acidic or basic. Microorganisms like a certain pH range. If pH goes outside this range, bacteria can get stressed or die.
You should put monitoring equipment at important spots in your plant. This includes aeration tanks, clarifiers, and sludge handling areas. Watching these places helps you catch changes early and keep your system healthy.
Note: Modern monitoring equipment connects to computers. This lets you see real-time data and get alerts if something is wrong. You can make better choices and respond fast to problems.
Using the right monitoring equipment keeps your activated sludge process safe, steady, and effective. It also protects your workers and the environment.
Activated sludge wastewater treatment takes out a lot of organic pollution. Microorganisms in the process break down waste fast and well. This method makes the amount of organic matter, called BOD, drop a lot. The water gets much cleaner before it leaves the plant.
Here is a table that shows how well this process works:
Parameter | Minimum Efficiency | Maximum Efficiency |
|---|---|---|
BOD | 8.48% | 88.92% |
Most plants reach the higher numbers in this range. You get steady results, so you can meet strict water rules. This process also works for many kinds of wastewater. You can use it in lots of places.
Tip: High efficiency helps keep rivers and lakes clean. It also keeps people safe.
You can change the activated sludge process to fit many needs. This system works for both small towns and big cities. You can change how much air goes in, how long water stays, and how much sludge you recycle. These changes help you treat different amounts and types of wastewater.
You can treat water from homes, factories, or farms.
You can change the process if waste goes up or down.
You can add or take away steps to meet new rules.
Here is a list that shows how flexible the system can be:
The process works with many types of wastewater and pollution.
You can match the steps to changes in flow, load, or temperature.
You can switch between tank types (anoxic, low oxygen, or aerobic) for best results.
This flexibility helps you keep the system working well, even when things change.
You need to take out nutrients like nitrogen and phosphorus to stop water pollution. Too many nutrients can make algae grow in rivers and lakes. The activated sludge process helps lower these nutrients.
You can see how well the process removes nitrogen in this table:
Study | Total Nitrogen Removal Efficiency |
|---|---|
Ye et al. | 28–30% |
Li et al. | 72.8% |
Wang et al. | 59% |
Troiani et al | 79% |
The process uses both biological and chemical ways to remove nutrients:
Mechanism Type | Description |
|---|---|
You add salts like calcium or iron to make phosphorus settle out. | |
Biological Removal | Microorganisms take up more phosphorus than they need, which removes it from the water. |
Combined Methods | You use both chemical and biological steps for better results. |
When you use activated sludge, you help keep water clean and safe for everyone.
You see the activated sludge process in many treatment plants worldwide. Cities and factories pick this method because it works well for different needs. People want a system that has worked for a long time. Activated sludge gives people trust because it is reliable.
This process is special because it treats both home and factory wastewater. You can count on it to take out harmful stuff before water goes back to nature. Many engineers and workers choose activated sludge because it gives good results every day.
Activated sludge can work in many kinds of wastewater systems. It fits small towns and big cities. You can use it in city plants, factories, or business buildings. The system can grow if your town gets bigger. You just add more tanks or make the plant larger. This makes it easy to plan for the future.
Here is a table that shows why activated sludge is the industry standard:
Benefit | Description |
|---|---|
Proven Performance | Demonstrates strong performance in treating domestic and industrial wastewater. |
Adaptability | Suitable for municipal, commercial, and industrial wastewater systems. |
Scalability | Allows for phased infrastructure growth, making it fit for both large and decentralized treatment facilities. |
Compatibility | Works well with advanced aeration systems and membrane bioreactors (MBRs). |
Support for Sustainability | Aligns with water reuse and broader sustainability goals. |
Activated sludge works with new technology too. Many plants use better aeration systems to save energy and clean water better. Some places add membrane bioreactors (MBRs) to make water even cleaner. This helps you follow strict water rules.
People care about saving water and the planet. Activated sludge helps with water reuse projects. You can clean water very well and use it again for farms or factories. This saves water and helps nature.
Many governments and groups say activated sludge is the best way to treat wastewater. You get a safe and strong system that is ready for the future. When you pick activated sludge, you join a worldwide standard that keeps water clean and people healthy.
Tip: If you want a process that works now and later, activated sludge is a trusted choice.
You have to think about how much energy you use. The activated sludge system needs a lot of electricity. Most of this power is for aeration. Blowers and diffusers put oxygen into the tanks. These machines can use more energy than other parts of the plant. If you do not watch your energy use, your bills can get high fast.
How much energy you use depends on your plant’s size. Here is a table that shows how much energy different plants use:
Plant Size | Energy Consumption (kWh/m³) |
|---|---|
Small Plants | 0.5 - 1.5 |
Medium Plants | 0.4 - 1.0 |
Large Plants | 0.3 - 0.8 |
Big plants often use less energy for each cubic meter of water. This is because large plants can use their equipment better. If you want to save energy, check your aeration system often. You can also use smart controls to change air flow and lower your bills.
Tip: Keep your equipment in good shape and use smart controls. This helps you use less energy.
Running an activated sludge system is not easy. You must pay attention to many things at the same time. You need to watch oxygen levels, sludge age, and how fast water moves. If you do not keep these balanced, problems can happen quickly.
Here is a table that shows some common problems and what causes them:
Problem | Symptoms | Root Causes |
|---|---|---|
Poor Settling and Cloudy Effluent | High effluent turbidity, visible solids carryover | Young sludge, organic overloading, insufficient MLSS, toxic shock |
Bulking Sludge | High SVI, poor compaction, light fluffy texture | Filamentous bacteria overgrowth, low DO, nutrient deficiency, septicity |
Foaming and Scum Formation | Thick foam, greasy scum, earthy odor | Nocardia proliferation, surfactants, grease accumulation |
Nitrification Failure | High ammonia, low nitrate levels | Insufficient sludge age, low DO, low alkalinity, cold temperature, toxicity |
Low Dissolved Oxygen | DO below 2 mg/L, septic odors | Failing aeration equipment, clogged diffusers, organic overloading |
High Energy Consumption | Rising electricity costs, excessive aeration | Over-aeration, inefficient diffusers, lack of automated control systems |
You should check your system every day. If you see foam, cloudy water, or bad smells, act quickly. Training and good tools help you find problems early. You can fix small problems before they get worse.
️ Note: Keeping good records and checking often makes your job easier. It also helps your plant work better.
Sludge management is very important in wastewater treatment. The process makes a lot of sludge that you must handle safely. If you do not manage sludge well, you can have storage, smell, or disposal problems.
You need to split sludge into two types: return sludge and waste sludge. Return sludge goes back to the aeration tank to keep the process working. Waste sludge leaves the system. You may need to make waste sludge thicker, take out water, or treat it before you get rid of it.
Here are some steps you might use for sludge management:
Thickening: Make sludge thicker so it takes up less space.
Dewatering: Take water out of sludge to make it lighter.
Stabilization: Treat sludge to kill germs and stop bad smells.
Disposal: Send treated sludge to landfills, farms, or burn it.
If you do not remove enough waste sludge, your system can get too full. If you remove too much, you lose helpful bacteria. You need to find the right balance to keep your plant healthy.
Tip: Always keep track of how much sludge you make and where it goes. Good records help you follow the rules and avoid trouble.
You need to watch the quality of wastewater that goes into your activated sludge system. Toxic things can hurt the microorganisms that clean your water. Even a little bit of chemicals, heavy metals, or factory waste can cause problems. You should look for sudden changes in the water coming in. These are called shock loads. Shock loads can happen if a factory dumps waste or if there is a chemical spill.
Activated sludge systems need healthy bacteria to break down pollution. Some bacteria, like ammonia-oxidizing bacteria (AOB), help remove nitrogen from water. If toxins get in, these bacteria stop working. Ammonia levels can go up fast. This means something toxic is in your plant.
The study showed that toxic water hurts nitrification a lot. Even small amounts of toxic stuff can stop ammonia-oxidizing bacteria (AOB) from working. This makes nitrification much worse very quickly. If you see ammonia go up, check for toxins right away.
You should test ammonia levels often. If you see a big jump, act fast. Find out where the problem started and stop the toxic water if you can. Keeping your bacteria safe helps your plant work well.
Activated sludge systems are more sensitive to toxins than some other systems. Biofilm-based systems, like trickling filters, can handle toxic shocks better. Activated sludge systems lose bacteria faster when toxins get in. The bacteria can stop working and even wash out of the system.
One big finding was that activated sludge and biofilm-based systems react differently to toxins. Activated sludge systems are more sensitive to toxic shocks. They lose bacteria faster and the bacteria stop working sooner. Biofilm-based systems are stronger and can handle toxins better.
Here is a table that shows how each system reacts to toxins:
System Type | Sensitivity to Toxins | Resilience to Shock Loads |
|---|---|---|
Activated Sludge | High | Low |
Biofilm-Based | Moderate | High |
To keep your activated sludge system safe, do these things:
Watch for sudden changes or strange smells in the water.
Test ammonia and other important things every day.
Teach workers to spot signs of toxic shock.
Use alarms or sensors to warn you early.
Work with factories to stop toxic waste from getting in.
Tip: Act fast to protect your system from damage. Always check your equipment and keep it working well.
You help your plant stay healthy when you watch for toxins and act quickly. Keeping your bacteria safe means your water stays clean.
You might wonder how activated sludge and trickling filters are different. Both help clean wastewater, but they do not work the same way. In activated sludge, you mix microorganisms with wastewater in a tank. Air is added to keep the mixture moving. The air gives oxygen to the bacteria. In a trickling filter, wastewater goes over rocks or plastic pieces. Microorganisms grow on these surfaces. They break down pollutants as water flows by.
Here is a table that shows the main differences:
Aspect | Activated Sludge | Trickling Filter |
|---|---|---|
Definition | Suspended culture procedure mixing biomass with wastewater | Attached culture procedure with biomass on media |
Components | Ventilation basins and secondary clarifier | Circular tank, underdrain system, distributors, clarifier |
Microorganisms | Suspended in mixed liquid suspended solids | Attached to the filter medium |
Treatment Efficiency | 90% to 95% BOD reduction | Effective for small-scale communities and industrial effluents |
Operational Requirements | More complex, potential issues like bulking and foaming | Low maintenance, ease of operation, reliable |
Activated sludge cleans water better, but you need to watch it closely. You must check for problems like foaming. Trickling filters are easier to run. They are good for small towns or factories.
You may also hear about membrane bioreactor systems, called MBRs. These use a special membrane to filter out solids after treatment. MBRs make very clean water. They remove almost all bacteria and tiny bits. You can use this water again for many things.
Here is a table to compare the two:
Aspect | Membrane Bioreactor (MBR) | Conventional Activated Sludge (CAS) |
|---|---|---|
Effluent Quality | Superior | Requires additional treatment |
Operational Complexity | Higher | Lower |
Energy Consumption | Increased | Lower |
MBRs give you water that is very clear. They take out almost all bacteria and germs. MBRs also lower BOD and COD a lot. But, you need more energy to run an MBR. You also need skilled workers and more money for repairs. MBRs can handle changes in wastewater better than activated sludge.
Tip: Pick MBRs if you want the cleanest water and can handle a harder system.
Some plants use oxidation ditches to treat water. These are long, oval channels. You mix and add air to the wastewater as it moves around. This process is simple and does not cost much. Mixers keep the water moving and add oxygen.
Here is a table that shows the main points:
Advantages of Oxidation Ditches | Disadvantages of Oxidation Ditches |
|---|---|
Cost-effective treatment | Greater operator attention required |
Simple operational skills needed | Capital costs due to mixer requirements |
High quality effluent produced | Poor effluent quality if not managed carefully |
Nitrate-N removal possible | |
Reduced overall oxygen requirements | |
Lower energy costs | |
Enhanced sludge settleability | |
Improved effluent quality |
Oxidation ditches make good water and use less energy. You must watch the system often. If you do not, water quality can get worse. These ditches work best for small towns or places where water flow does not change much.
Remember, each method has good and bad points. Pick the one that matches your needs and what you have.
You face many choices when you select a wastewater treatment method. Each system has strengths and weaknesses. You need to match the method to your site, your budget, and your treatment goals. Start by looking at the space you have. Some systems, like trickling filters, need more land. Others, like membrane bioreactors, use less space but may cost more.
Think about how much money you can spend. Construction costs can be high for some systems. You also need to plan for operating costs. Some methods use more energy or need more chemicals. Activated sludge systems, for example, often need more electricity for aeration. Oxidation ditches may save energy but need careful attention from operators.
You should also look at how long water and sludge stay in the system. Hydraulic retention time (HRT) tells you how long the water stays in the treatment process. Sludge retention time (SRT) shows how long the sludge remains active in the reactor. These times affect how well the system removes pollutants. Longer times can mean better treatment, but they may also need bigger tanks.
Here are some key factors you should consider:
Land area needed for the system
Construction costs for building the plant
Operating costs for running the system each day
Hydraulic retention time (HRT)
Sludge retention time (SRT)
You also need to think about the type of wastewater you have. Some systems handle high-strength industrial waste better than others. If you treat water from homes, you may not need the same features as a factory. Check the flow rates you expect. Make sure the system can handle both normal and peak flows.
If you work in a small town, you may face special challenges. You might have less money, fewer workers, or limited access to chemicals. Road access and local rules can also affect your choice. You need a system that fits your resources and meets local needs.
To help you decide, follow these steps:
Identify the type of debris and waste your system will handle.
Determine the flow rates your plant must manage.
Define the size and shape of the area where you will install the system.
Set the hydraulic conditions you need to keep.
Consider any extra needs, like materials for construction or easy access for maintenance.
Tip: Always match your treatment method to your site, your budget, and your local needs. Talk to experts if you are not sure which system is best.
Choosing the right method helps you protect the environment, save money, and keep your community safe.
Shandong Better Environmental Protection Technology makes custom solutions for wastewater. The company listens to what you need and checks your water quality. You get a system that fits your site and your goals. Shandong Better uses advanced technology to build reliable activated sludge systems. These systems help you remove organic pollutants and follow strict discharge rules.
You can pick different tank sizes, aeration methods, and control systems. Engineers help you choose the best layout for your plant. You also get help with installation and training. Shandong Better has CE, ISO 9001, ISO 14001, and ISO 45001 certifications. These show you get high-quality equipment and safe operation.
Tip: Custom systems help you save space, energy, and money. You get a solution that fits your site and your budget.
You must manage sludge well to keep your plant working. Shandong Better offers many types of sludge dewatering equipment. These machines help you lower the volume and weight of sludge. You can pick belt filter presses, screw presses, or centrifuges. Each type works for different sludge and plant sizes.
The company helps you choose the right machine for your needs. You get advice on how to thicken, dewater, and handle sludge safely. The equipment is easy to use and maintain. You also get training and technical support. This helps you avoid problems and keep your plant clean.
Here is a quick list of benefits you get:
Lower sludge disposal costs
Cleaner plant environment
Less odor and mess
Easier transport and storage
Shandong Better has many types of sewage treatment equipment. The company supplies clarifiers, aeration tanks, pumps, and control panels. You also get screens, grit chambers, and disinfection units. Each piece of equipment meets strict quality standards.
You can ask for custom designs to fit your site. The team helps you pick the right equipment for your flow rates and water quality. You get help with installation, setup, and ongoing support. Shandong Better’s after-sales service team is ready to answer your questions and solve any issues.
Note: Picking the right equipment helps you run your plant safely and efficiently. You protect the environment and follow all local rules.
You need a good partner when you build a wastewater treatment system. Shandong Better Environmental Protection Technology gives you expert help with engineering design. The company helps you from your first idea until everything is set up. Their team listens to what you want and makes a plan that fits your site.
First, engineers visit your site and check everything. They look at your water quality, how much water you have, and the local rules. You get a custom design that matches what you need. The team uses special computer tools to make sure your system works well and follows all the rules.
You get help step by step:
Site Evaluation
Skilled engineers come to your site. They look around and collect important information.
Process Design
You get a plan for tanks, aeration, and sludge handling. The plan fits your water and space.
Equipment Selection
You pick the best machines for your plant. The team tells you which pumps, clarifiers, and tools to use.
Installation Guidance
You get easy instructions and help when you set things up. The company gives you videos and can help in person.
Commissioning and Training
You learn how to run your system. Experts show you how to use and take care of your equipment.
Tip: You can always ask for more help. Shandong Better gives you training and helps fix problems.
The team also helps you follow all the rules. They check that your system meets local and national laws. You get papers and certificates like CE, ISO 9001, ISO 14001, and ISO 45001. These show your plant is safe and high quality.
Here is a table that shows what you get with Shandong Better’s engineering support:
Service | Benefit |
|---|---|
Custom Design | Fits your site and needs |
Technical Guidance | Helps you install and operate |
Compliance Support | Meets all regulations |
Training | Teaches you to run your system |
After-Sales Service | Solves problems quickly |
You can count on Shandong Better for good advice and quick help. The company helps you fix problems and make your plant work better. You get a partner who wants you to do well and cares about the environment.
Note: Good engineering design and support help you save money, stop mistakes, and keep your plant working well.
You need to start with a good site for your wastewater project. Pick a location that is easy to reach and has enough space for tanks, pipes, and equipment. Make sure the ground is strong and not likely to flood. Check if the site is close to homes or businesses. This helps you plan for noise, odor, and safety.
Look at the layout of your plant. Place tanks and buildings so workers can move around easily. Leave room for trucks and maintenance. Plan for future growth. You might need to add more tanks or equipment later. Good planning now saves you time and money later.
Think about power and water supply. Your plant needs steady electricity and clean water for cleaning and emergencies. Make sure you have backup power in case of outages. Check local rules about where you can build and how you must protect the environment.
Tip: Visit other treatment plants if you can. You will see what works well and what problems to avoid.
You need skilled people to run your wastewater plant. Operators must know how to check equipment, test water, and fix problems. Training helps your team work safely and keep the plant running well.
Give your staff clear instructions for daily tasks. Teach them how to spot trouble, like strange smells or cloudy water. Make sure they know how to use safety gear. Hold regular training sessions to keep everyone up to date.
Use simple checklists for daily, weekly, and monthly jobs. This helps you catch small problems before they get big. Encourage your team to ask questions and share ideas. Good teamwork keeps your plant safe and efficient.
️ Note: Well-trained workers help you avoid costly mistakes and keep your plant in top shape.
You must watch your costs and follow all rules. Good planning helps you save money and avoid fines. Start by learning the local and national laws for wastewater treatment. Know what reports you must send and what limits you must meet.

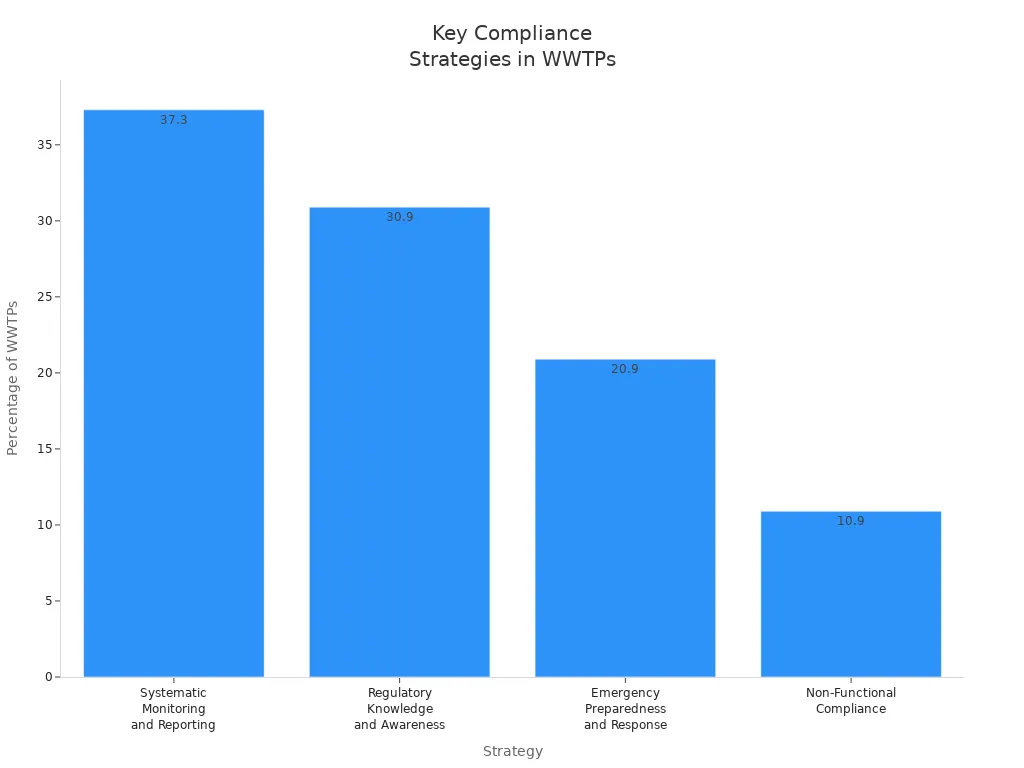

Here is a table that shows the most important strategies for staying compliant and cost-effective:
Strategy | Percentage of WWTPs | Description |
|---|---|---|
Systematic Monitoring and Reporting | 37.3% | Collect data and report performance to meet regulations. |
Regulatory Knowledge and Awareness | 30.9% | Learn the rules and your duties as an operator. |
Emergency Preparedness and Response | 20.9% | Set up plans for spills or other emergencies. |
Non-Functional Compliance | 10.9% | Shows when plants do not follow rules or lack good systems. |
You face many challenges that can affect your costs and compliance. These include:
Changes in factory operations, like new chemicals or more production
Poor maintenance of equipment
New or changing rules from the government
Old equipment that needs upgrades
Problems when updating your plant
Using wastewater management software can help you keep good records and make reports easier. This software tracks your data and helps you avoid mistakes. It also lowers your risk of fines and keeps your plant running smoothly.
Tip: Stay up to date with rules and train your team often. Good records and quick action help you avoid trouble and save money.
You want your wastewater project to succeed. Working with the right partner makes a big difference. Shandong Better Environmental Protection Technology gives you expert help at every step. You get more than just equipment. You get a team that listens, plans, and supports you.
When should you reach out to Shandong Better?
You have a new wastewater project and need a custom solution.
You want to upgrade your current plant for better results.
You face strict discharge rules and need to meet them.
You want to save energy and lower costs.
You need help with sludge management or equipment selection.
Shandong Better helps you from the start. You can ask questions and share your goals. The team visits your site and checks your needs. You get a plan that fits your space, budget, and local rules. The engineers design systems that work for your water quality and flow.
Tip: Early planning with experts helps you avoid mistakes and costly changes later.
You also get strong support after your system starts. Shandong Better trains your staff. You learn how to run and maintain your plant. If you have a problem, you get fast help. The company offers both online and on-site support. You can call, email, or ask for a visit.
Here is what you gain by partnering with Shandong Better:
Benefit | What You Get |
|---|---|
Custom Solutions | Systems designed for your exact needs |
Professional Support | Expert advice, training, and troubleshooting |
Quality Assurance | Equipment with CE, ISO 9001, ISO 14001, ISO 45001 |
Compliance Help | Guidance to meet all local and national rules |
After-Sales Service | Ongoing help and quick response to issues |
You do not have to solve every problem alone. Shandong Better brings years of experience and a strong team. You get peace of mind knowing your plant will work well and meet all standards.
️ Note: Choosing a trusted partner like Shandong Better helps you protect the environment and your investment.
If you want a smooth project and lasting results, reach out to Shandong Better early. You will see the value of expert support and reliable service.
You now know that activated sludge uses microorganisms to clean dirty water. You learned about the main steps and important parts of the system. You saw that this method works well and can be changed for different needs. You also got simple tips for running a treatment plant. Picking the right system is very important. Shandong Better Environmental Protection Technology offers expert help and custom systems. If you want clean water and good results, talk to a professional for advice.
Remember, getting help from experts makes your project easier and keeps your water safe.
Activated sludge is a mix of tiny living things and wastewater. You use it to help break down organic pollution. This process cleans water before you let it go back to nature.
Aeration puts oxygen into the tank. Microorganisms need air to break down waste. Oxygen keeps bacteria working and helps them clean water faster.
You recycle sludge to keep enough microorganisms in the tank. This step keeps the treatment working well. You also take out extra sludge so the tank does not get too full.
BOD means Biochemical Oxygen Demand. It shows how much oxygen microorganisms need to break down waste. If BOD is low, the water is cleaner.
You test the water for BOD, pH, and dissolved oxygen. You also check sludge levels and look for clear water leaving the plant.
Yes, activated sludge can take out nutrients. Microorganisms help lower nitrogen and phosphorus. This protects rivers and lakes from getting polluted.
Check the oxygen level and how old the sludge is. Look for signs of too much waste or harmful chemicals. Fix problems fast to keep your system healthy.
